Description
As the pioneer that put dual FOV into thermal optics, InfiRay has hit the market again with the upgraded dual field of view monocular-ZH50 V2.
There are four reasons that we need to choose ZH50 V2:
One device with an adjustable field of view;
No refocus and seamless switch;
Ultra-clear Imaging and
long-time hunting via 2 battery packs.
ZH50 V2 will be the perfect choice if you want to experience the easy dual field-of-view adventure, it is the right tool you need to take your hunt to the next level.

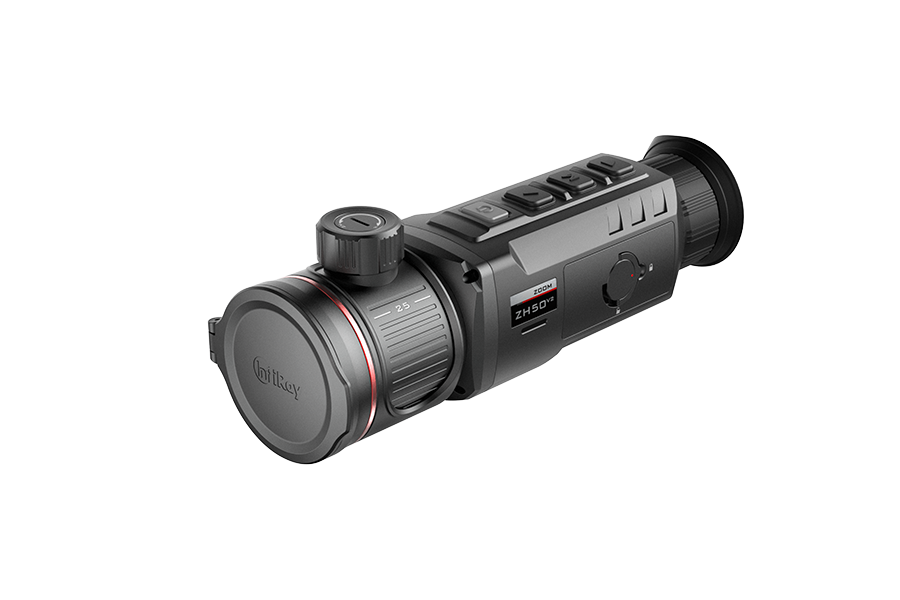

The largest monocular in the Zoom Series by InfiRay - the ZH50. A top-end thermal monocular with the first of it's kind, DUAL FIELD OF VIEW (FOV). High end display resolution - 1440x1080 FHD OLED.
SHUTTERLESS technology!!
Key Features;
- 640x512 pixel, 12μm and NETD ≤25mk (25 °C, F#=1.0) Thermal Imaging Sensor
- SHUTTERLESS Function
- High Definition Display - 1440x1080 FHD OLED
- Picture-in-Picture (PiP) Function
- 5x COLOUR Palettes
- EXTENDED Battery Life - 20hrs Operating Time (2x 10hr batteries)
- On-Board STORAGE Features
What's in the Box?
- ZOOM Series Thermal Imaging Monocular
- Portable bag
- IBP-1 Battery Pack × 2
- IBC-1 battery charger for Battery Pack
- Power adapter
- Data cable
- Neck Strap
- Wrist strap
- Lens cleaning cloth
- Quick Start Guide
|
Model |
ZH25 |
ZH38 |
ZH50 |
|
Detector Resolution |
640x512 |
||
|
12μm |
|||
|
NETD |
≤25mk |
||
|
Frame Rate |
50Hz |
||
|
Objective Lens |
13 / 25mm |
19 / 38mm |
25 / 50mm |
|
F-number |
1/1.2 |
0.9/1.2 |
0.92/1.2 |
|
Field Of View |
32.9 x 25 / |
22.9 x 17.2 / |
17.5 x 13.1 / |
|
Magnification |
1.1x ~ 8.8x |
1.6x ~ 12.8x |
2.2x ~ 17.6x |
|
Digital Zoom |
1x / 2x / 3x / 4x |
||
|
Display (Type, Resolution) |
FHD OLED 1440 x 1080 (0.4") |
||
|
Battery Type |
Li-ion Battery pack / 4400mAh / DC 3.7V |
||
|
Max. Battery Life |
20h (2x Batteries, 10hrs each) |
||
|
External Power |
5V (Type C USB) |
||
|
Dimension, mm |
190 × 65 × 60 |
190 × 65 × 60 |
190 × 65 × 60 |
|
Weight |
540g |
580g |
650g |
|
Detection Range (Target size:1.7m×0.5m，P(n)=99%) |
675m / 1298m |
987m / 1974m |
1298m / 2596m |
|
WiFi connectivity |
✔ |
✔ |
✔ |
|
Picture-in-Picture (PIP) |
✔ |
✔ |
✔ |
|
Onboard storage (memory) |
32Gb |
||
