Description

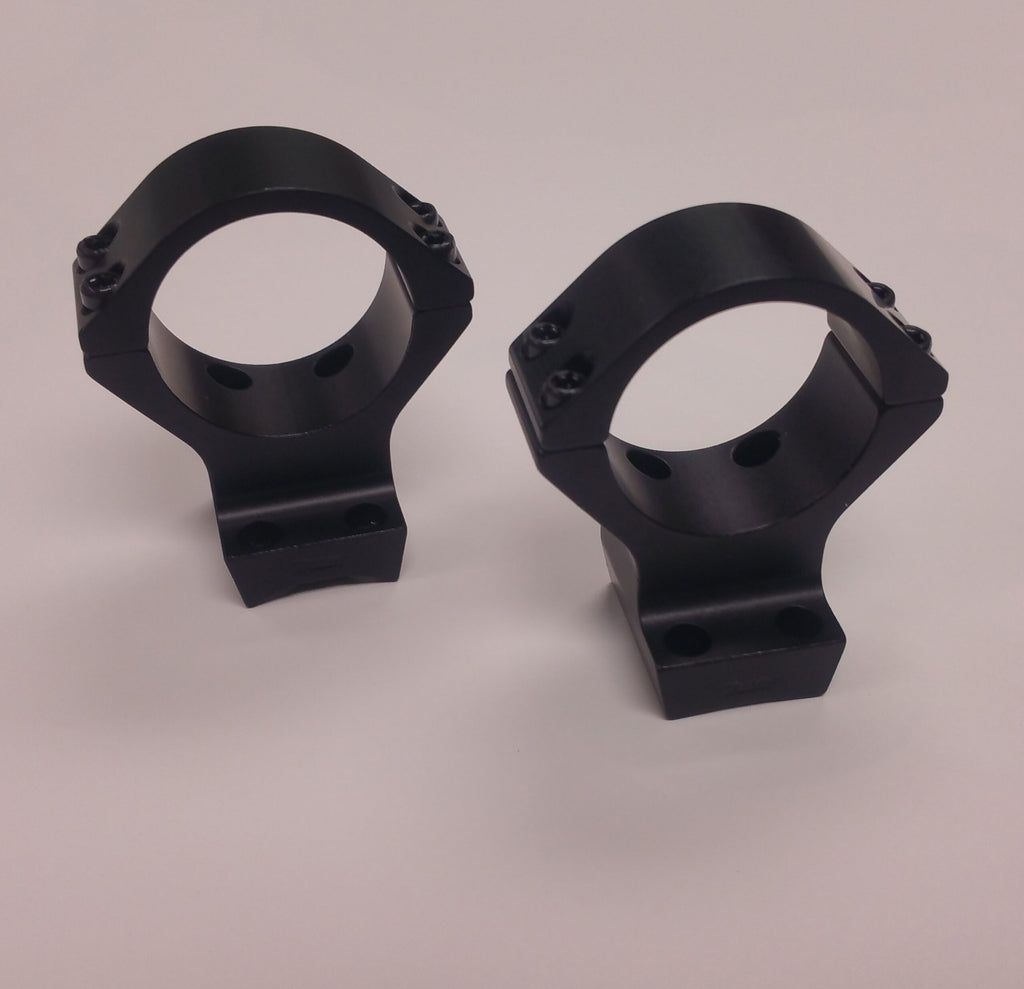

Made in America, these Browning X-Bolt Scope Mounts made by Talley Manufacturing offer a unique and simplified one-piece scope ring and base solution for Browning X-Bolt rifles. This simplified mounting system eliminates the possibility of an “out of alignment” interface or “loose connection” between the ring and base of traditional two-piece designs. Ultimately this provides more strength and durability than rival steel rings and bases, but with a lighter overall weight. Fully CNC machined from lightweight aircraft-grade aluminum to the industries tightest tolerances, this rigid scope mounting platform requires no lapping and is ready to go out of the box.
With over 40 years of setting the industry standard for superior quality, Talley Scope Mounts have become known for precise tolerances. American craftsmanship, state-of-the-art CNC automation and stringent quality controls have vaulted Talley products to the top of the scope ring industry. Talley Scope Mount systems provide repeatability, flexibility, strength, and durability for the most discriminating of sportsmen. Simply said, Talley Scope Mounts are the best.
- American Made, Lightweight Alloy Scope Mounts
- Fully CNC Machined
- High-Grade Lightweight Aircraft Aluminum
- Integrated Scope Ring and Base Design
- Lapping Not Required (voids warranty)
- Designed to fit Browning X-Bolt rifles.
| Ring Height | Rear Height | Front Height | Available for Main Tubes | Weight (per set) |
| Low | .515″ | .440″ | 1″ / 30MM / 34MM | 2.0oz / 2.3oz / 2.6oz |
| Medium | .615″ | .540″ | 1″ / 30MM / 34MM | 2.2oz / 2.5oz / 2.8oz |
| High | .715″ | .640″ | 1″ / 30MM / 34MM | 2.3oz / 2.6oz / 3.1oz |
1 The height is measured from the top of the action/ receiver to the bottom of the scope tube at the respective mounting location
2 Hole spacing measured center to center.
- Front hole spacing: .700inches (17.78mm)
- Rear hole spacing: .700 inches (17.78mm)
