STRONG CONNECTION. STRONG BOND.

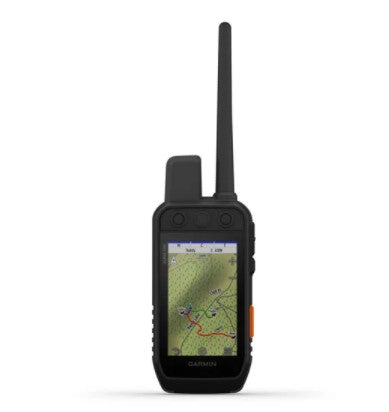

Track and train your dogs with the Alpha 200i system, featuring inReach® Iridium satellite technology, a sunlight-readable 3.5 inch capacitive touchscreen and user-friendly, six-button design.
Designed to make tracking and training simple, accessible and fast.
Track and train your pack while they're out in the field.
Keep inactive dogs in the system for easier setup and management.
inReach technology helps you keep loved ones updated when mobiles can't
Navigate every hunt with the best in Garmin mapping and sensors.
User-replaceable battery lasts up to 20 hours; up to 15 hours with inReach technology enabled.
| HIGH-SENSITIVITY RECEIVER |
|
| PHYSICAL DIMENSIONS |
6.8 x 16.2 x 3.4 cm *dimensions do not include antenna |
| TOUCHSCREEN |
|
| DISPLAY SIZE |
4.7 W x 7.7 H cm; 3.5 inch diag (88.9 mm) |
| DISPLAY RESOLUTION |
282 x 470 pixels |
| DISPLAY TYPE |
Transflective, colour TFT touchscreen |
| WEIGHT |
280 g with standard antenna and battery |
| BATTERY TYPE |
Rechargeable lithium-ion (included) |
| BATTERY LIFE |
Up to 20 hours; up to 15 hours with inReach® technology enabled |
| WATER RATING |
IPX7 |
| INTERFACE |
High-speed USB |
| MEMORY/HISTORY |
16 GB |
Maps & Memory
|
| PRELOADED MAPS |
Yes (TopoActive)
|
| ABILITY TO ADD MAPS |
|
| BASEMAP |
|
| AUTOMATIC ROUTING (TURN BY TURN ROUTING ON ROADS) FOR OUTDOOR ACTIVITIES |
Yes (with optional mapping for detailed roads) |
| BIRDSEYE |
Yes, direct to device (no annual subscription required) |
| EXTERNAL MEMORY STORAGE |
microSD™ card (not included) |
| WAYPOINTS/FAVORITES/LOCATIONS |
10,000 |
| TRACKS |
Up to 20 dogs (TT 15/TT 15 mini and T5/T 5 mini) and buddies (Alpha 100 and Alpha 200i) simultaneously |
| TRACK LOG |
20,000 points, 250 saved gpx tracks, 300 saved fit activities |
| ROUTES |
250 |
| STORED CONTACTS |
250 dogs |
| GROUP MANAGEMENT |
|
Sensors
|
| BAROMETRIC ALTIMETER |
|
| COMPASS |
Yes (tilt-compensated 3-axis) |
Safety and Tracking Features
|
| LIVETRACK |
yes (with Garmin Explore™) |
inReach® Features
|
| INTERACTIVE SOS |
|
| SEND AND RECEIVE TEXT MESSAGES TO SMS AND EMAIL |
|
| EXCHANGE LOCATIONS WITH OTHER INREACH DEVICE |
|
| VIRTUAL KEYBOARD FOR CUSTOM MESSAGING |
|
| SEND WAYPOINTS TO MAPSHARE DURING TRIP |
|
| SEND ROUTE SELECTION TO MAPSHARE DURING TRIP |
|
Two-way Radio Features
|
| FREQUENCY BAND |
VHF |
| RANGE |
TT 15/T 5, 14.5 kilometres; TT 15 mini/T 5 mini, 6.5 kilometres |
Outdoor Applications
|
| COMPATIBLE WITH GARMIN EXPLORE™ APP |
|
| GARMIN EXPLORE WEBSITE COMPATIBLE |
|
Connections
|
| WIRELESS CONNECTIVITY |
Yes (Wi-Fi®, Bluetooth® and ANT+®) |
