Description

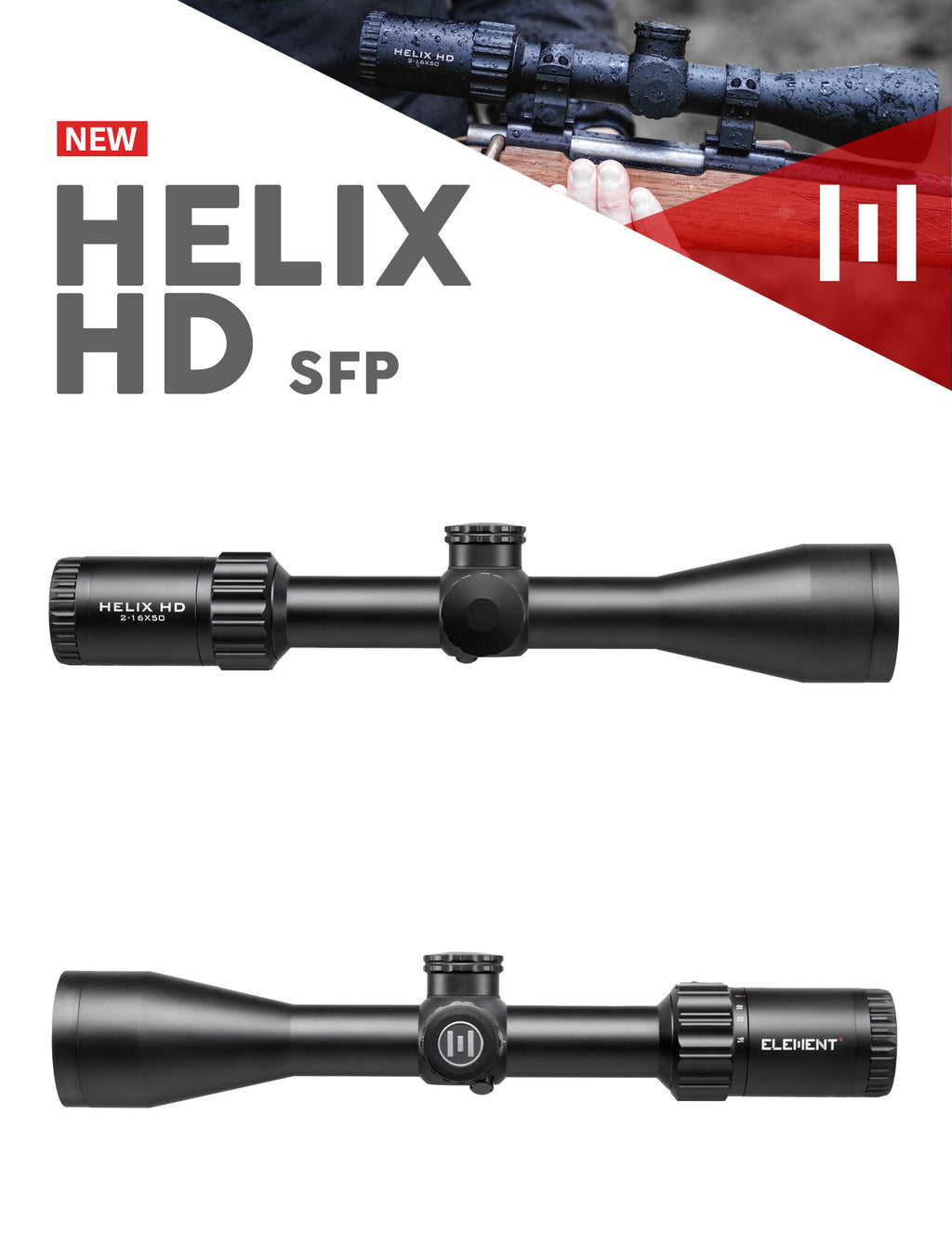

The Helix HD model steps it up another notch with ED Glass, Reticle Illumination, a massive Zoom Range and more Elevation Travel.
And, they’ve capped both the windage and elevation turrets for a more hunter-friendly, compact feel.
This is on top of Helix’s core features which include clear glass, smart reticle, innovative design, and a turret system superior to other products in the same price class.
FEATURES
- 30mm Main Body Tube
- 8x Zoom Optical System
- Compact, Lightweight Design
- Second Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 10m-Infinity
- Fully Multi-Coated Lenses with HD Glass
- Capped, Resettable Turrets
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth, ‘Cheat Sheet’ Stickers & Clear Lens Caps Included
SPECS
MAGNIFICATION RANGE 2-16x
TUBE DIAMETER 30mm
OBJECTIVE LENS DIAMETER 50mm
EXIT PUPIL 8.5-3.1mm
EYE RELIEF 101.6mm (4″)
FIELD OF VIEW @100m: 20.2 – 2.51m
CLICK VALUE 1/10 MRAD (6 MRAD / REV)
ELEVATION ADJ. RANGE 100 MOA 29 MRAD
WINDAGE ADJ. RANGE 45 MOA 13 MRAD
MINIMUM PARALLAX 10 YDS 10 METERS
LENGTH 13.39 Inches 340 mm
WEIGHT 25.6oz 728gr
