Description

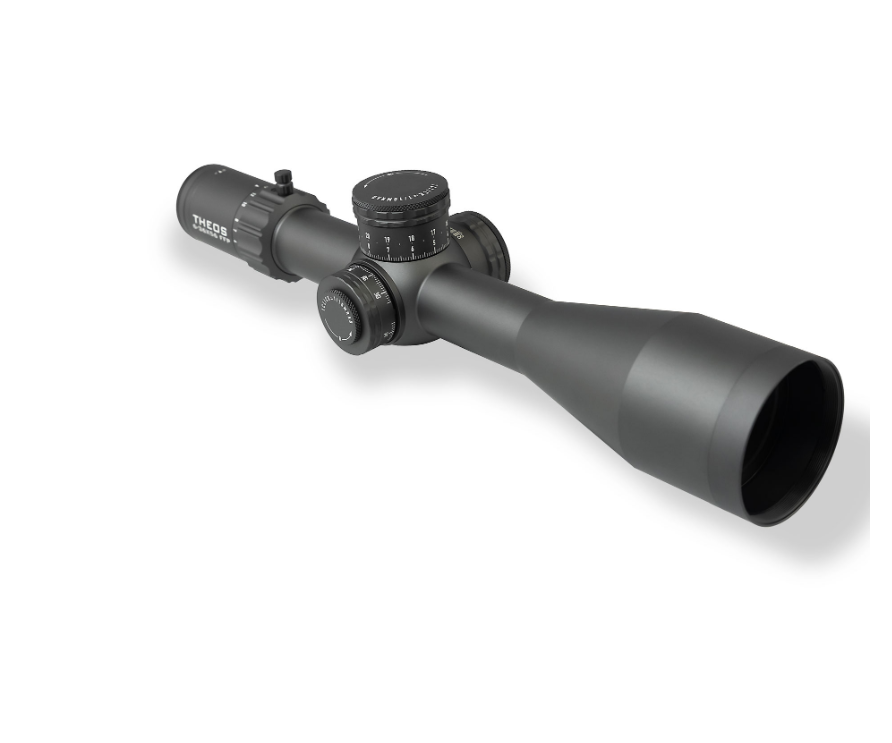

THEOS has entered the room – Created through a three year process of meticulous planning, careful crafting and brutal testing. With a completely re-engineered turret system, digital illumination control and a magnification range of 6-36x, Element Optics has raised the bar governing what a flagship should be and placed the Theos firmly on the throne.
New features on this model include a revolution flag that provides a visual indication when you pass a full turn, a new zero-stop mechanism that requires no tools, a digital illumination that clears up space around the parallax knob, and an aperture ring that manipulates the depth of field when needed.
Features:
- 34mm Main Body Tube
- Exposed Elevation (12 MRAD per Revolution)
- Capped Windage with Thread Protection Ring

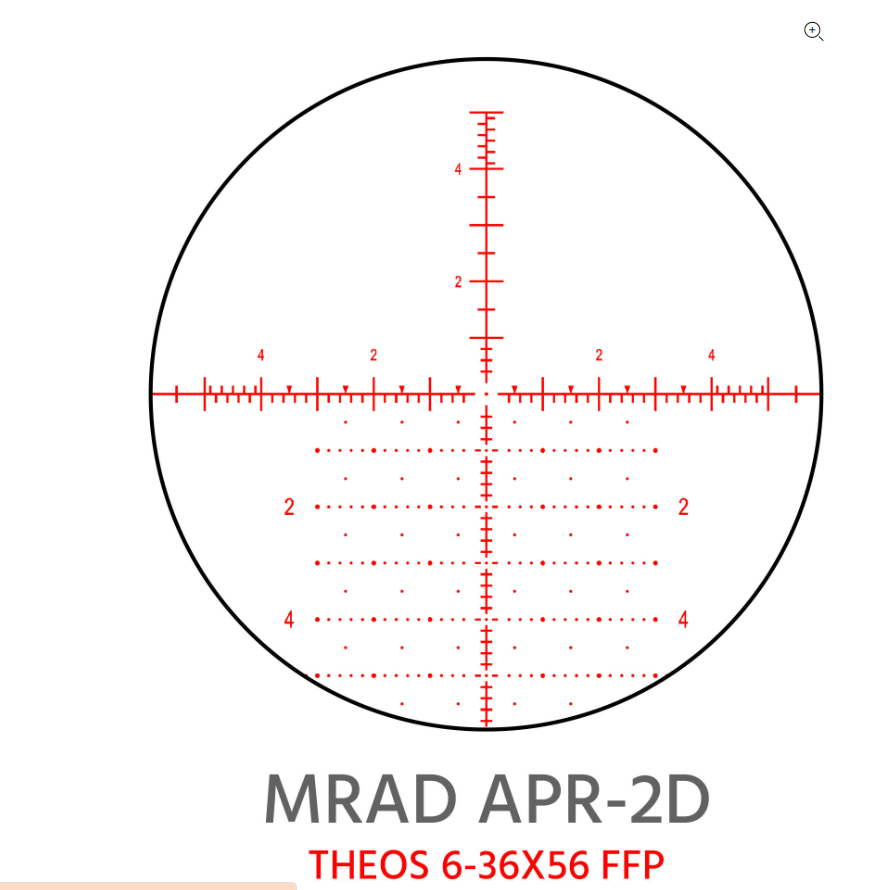

- Illuminated, First Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 10m-Infinity
- Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer
- Tool-free Resettable Turrets
- Hard Mechanical Zero-Stop & Revolution Indicator Flag
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Aperture Ring & Neoprene Cover included
SPECS
MAGNIFICATION RANGE
6-36x
TUBE DIAMETER
34mm
OBJECTIVE LENS DIAMETER
55mm
EXIT PUPIL
8.8-1.6mm
EYE RELIEF
74-89mm
FIELD OF VIEW
@100m: 6.8 – 1.1m
@100yds: 20.3-3.4ft
CLICK VALUE
1/10 MRAD
(12 MRAD / REV)
ELEVATION ADJ. RANGE
100 MOA
29 MRAD
WINDAGE ADJ. RANGE
40 MOA
11.6 MRAD
MINIMUM PARALLAX
10 YDS
10 METERS
LENGTH
14.8″ Inches
377mm
WEIGHT
36.5oz
1035gr
