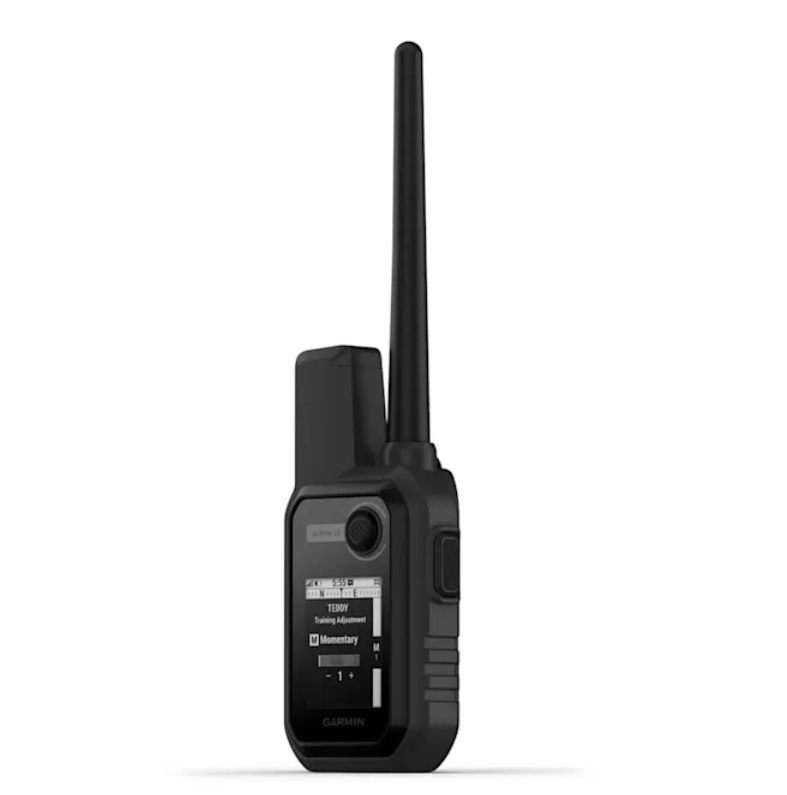

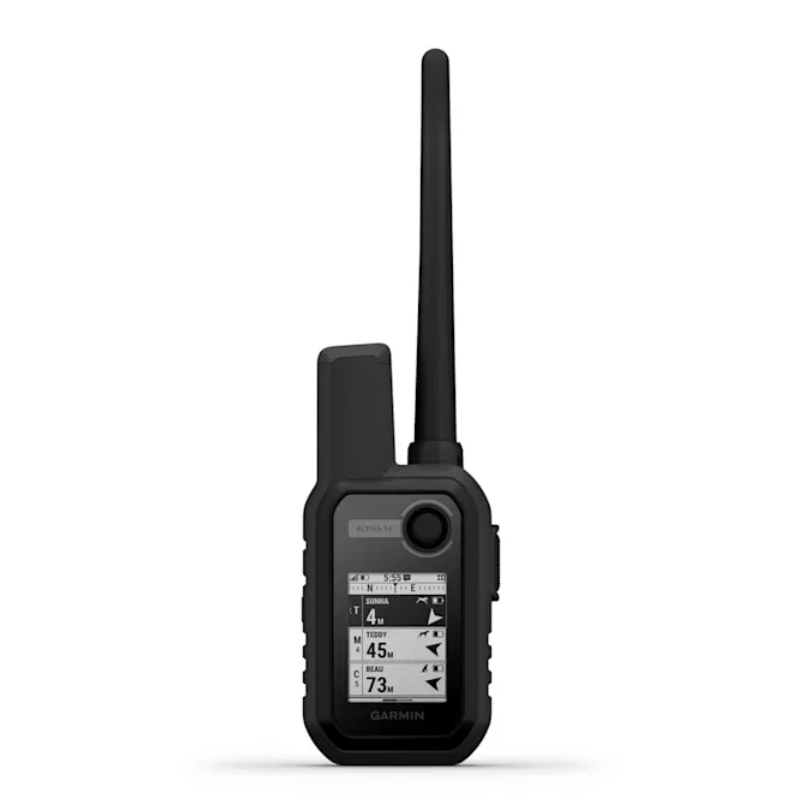

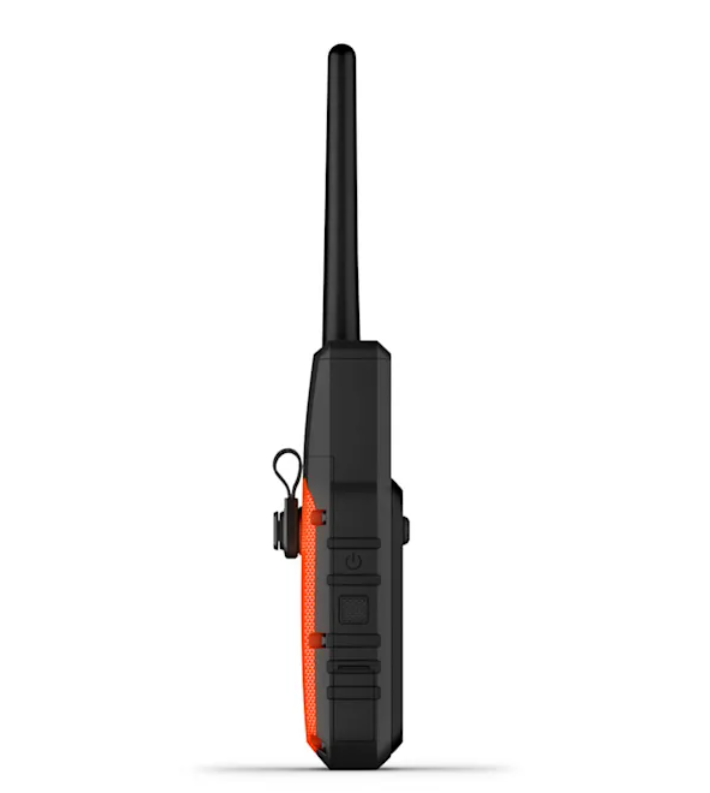

For more flexibility on the hunt, the compact Alpha 10 handheld can be used on its own, connected to your compatible smartphone or connected to other Garmin dog tracking devices.
| Dimension |
2.3 x 4.8 x 1.1″ (5.8 x 12.1 x 2.9 cm); dimensions do not include antenna |
| Weight |
5.6 oz (160 g) with standard antenna and spine mount attached |
| Water rating |
IPX7 |
| Display Type |
Sunlight-readable, monochrome, transflective memory-in-pixel (MIP) |
| Display Size |
1.8″ (45 mm) diagonal |
| Display Resolution |
128 x 128 pixels |
| Battery type |
Rechargeable internal lithium-ion; nonreplaceable |
| Battery life |
Up to 1 week (40 hours of use) |
| Interface |
microUSB™ |
Sensors
|
| Compass |
Yes (tilt-compensated 3-axis) |
| High-sensitivity receiver |
Yes (GPS and Galileo) |
Radio Features
|
| Frequency band |
VHF |
| Range |
TT 15/T 5 = 14.5 kilometres; TT 15 mini/T 5 mini = 6.5 kilometres |
Outdoor Applications
|
| Compatible with Garmin Explore™ app |
|
| Garmin Explore website compatible |
|
Connections
|
| Wireless Connectivity |
Yes (Bluetooth® Low Energy and ANT+®) |
Additional
|
| Additional |
Track storage: up to 10 days |
