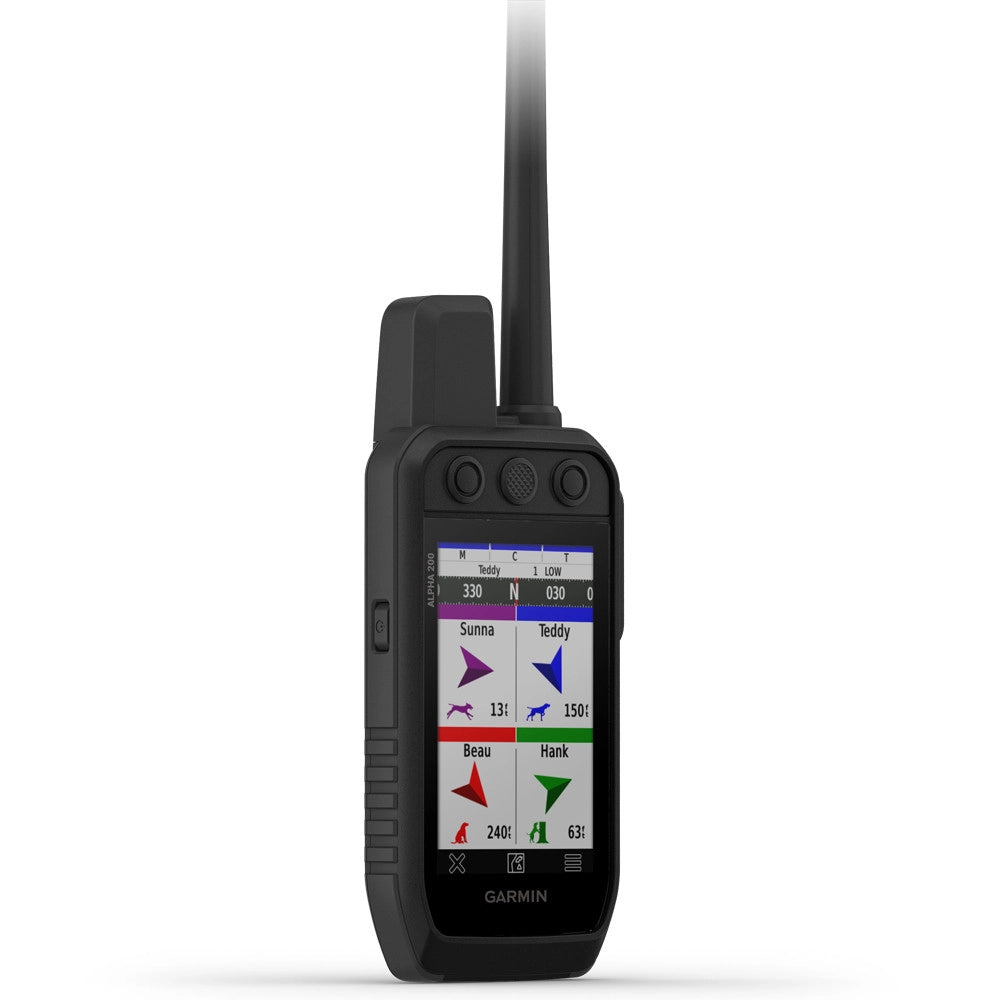

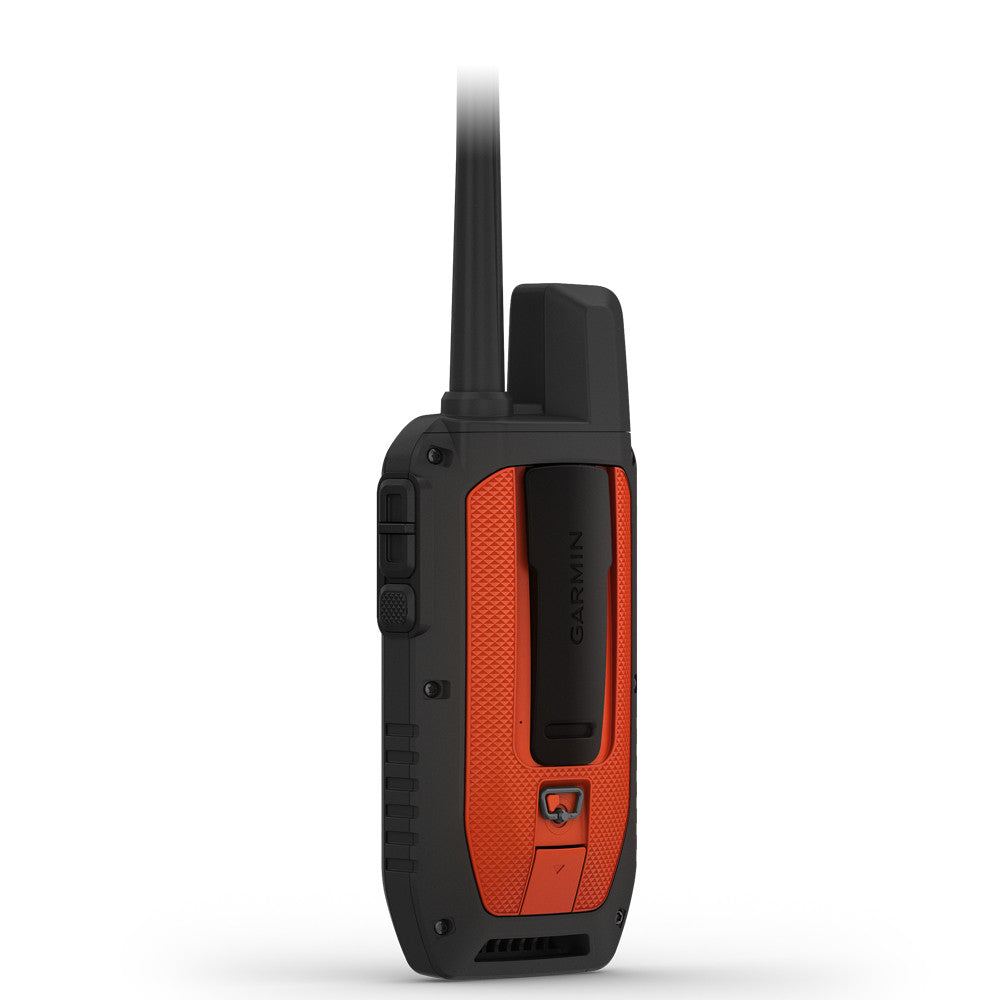

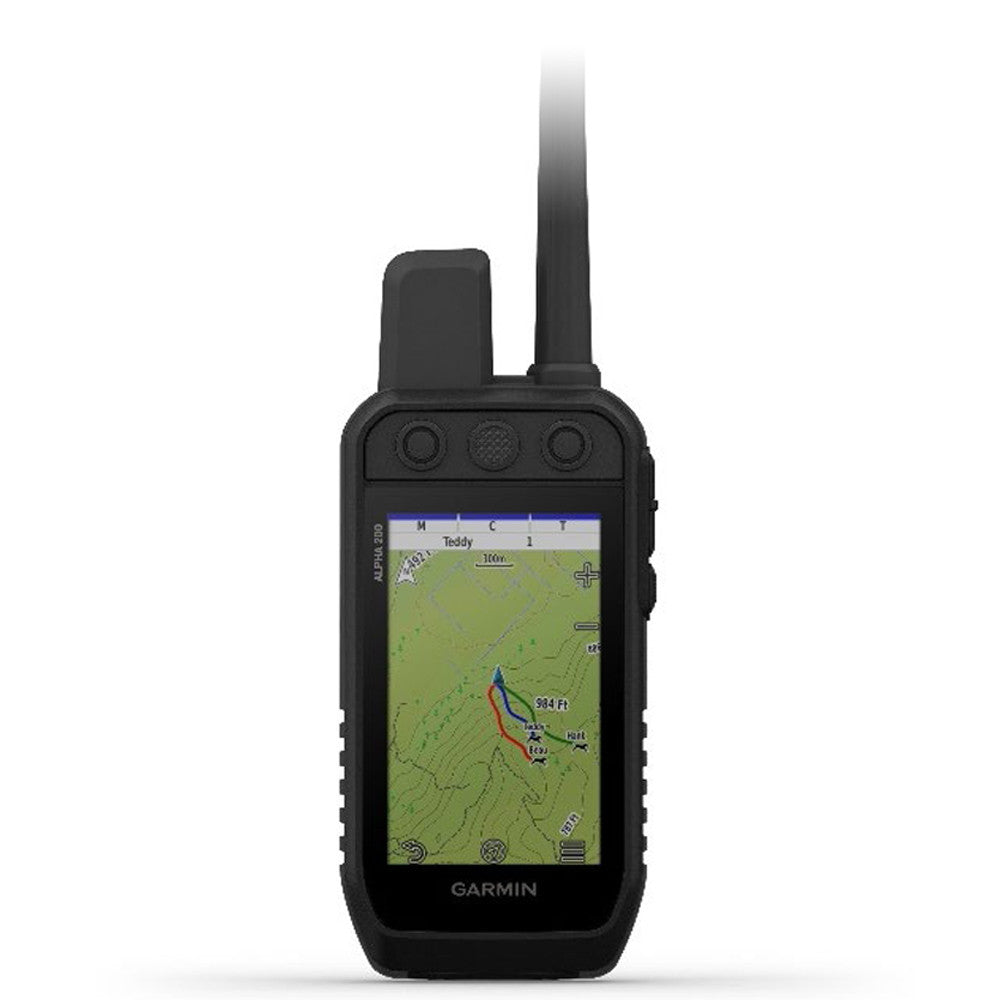

Track and train your dogs with the Alpha® 200, Handheld Only system, featuring a sunlight-readable 3.50″ capacitive touchscreen and user-friendly, six-button design1.
| Dimension |
2.70 x 6.40 x 1.30″ (6.80 x 16.20 x 3.40 cm) *dimensions do not include antenna |
| Weight |
9.90 oz (280 g) with standard antenna and battery |
| Water rating |
IPX7 |
| Touchscreen |
Yes |
| Display Type |
Transflective, colour TFT touchscreen |
| Display Size |
1.80″ W x 3.0″ H (4.70 x 7.70 cm); 3.50″ diag (88.90 mm) |
| Display Resolution |
282 x 470 pixels |
| Battery type |
rechargeable lithium-ion (included) |
| Battery life |
Up to 20 hours |
| Memory/History |
16 GB |
| Interface |
High-speed USB |
| Maps & Memory |
| Preloaded maps |
Yes (TopoActive) |
| Ability to add maps |
Yes |
| Basemap |
Yes |
| Automatic routing (turn by turn routing on roads) for outdoor activities |
Yes (with optional mapping for detailed roads) |
| Satellite Imagery |
Yes, direct to device (no annual subscription required) |
| External memory storage |
microSD™ card (not included) |
| Waypoints/favorites/locations |
10,000 |
| Tracks |
Up to 20 assets (any combination of compatible dog devices and handhelds) |
| Navigation Track Log |
20,000 points, 200 saved gpx tracks, 300 saved fit activities |
| Navigation Routes |
250 |
| Stored contacts |
250 dogs |
| Group management |
Yes |
| Sensors |
| GPS |
Yes |
| Galileo |
Yes |
| Barometric altimeter |
Yes |
| Compass |
Yes (tilt-compensated 3-axis) |
| High-sensitivity receiver |
Yes |
| Daily Smart Features |
| Compatible with Garmin Messenger app |
Yes |
| Safety and Tracking Features |
| LiveTrack |
Yes |
| Tactical Features |
| XERO™ Locations |
Yes |
| Outdoor Recreation |
| Point-to-point navigation |
Yes |
| Area calculation |
Yes |
| FISH FORECAST |
Yes |
| Sun and moon information |
Yes |
| Custom maps compatible |
Yes |
| Radio Features |
| Frequency band |
VHF |
| Channels |
5 |
| Range |
T 5, 14.50 kilometres; T 5 mini, 14.50 kilometres |
| Location reporting (send and receive GPS positions) |
Yes |
| Vibration alert |
Yes |
| Contacts |
Yes |
| Outdoor Applications |
| Compatible with Garmin Explore™ app |
Yes |
| Garmin Explore website compatible |
Yes |
| Dog tracking |
Yes |
| Connections |
| Connections Wireless Connectivity |
Yes (Wi-Fi®, Bluetooth® and ANT+®) |
