Description
See more fish, in more detail, in real time. LiveScope 2 HD takes Garmin's live scanning sonar and sharpens it — up to 50% more detail and 20% higher resolution than the original, with reduced artifacts and smoother imaging so you're not second-guessing what's on screen.
What's different:
- Clearer picture- up to 50% more detail, 20% higher resolution, less noise, smoother images

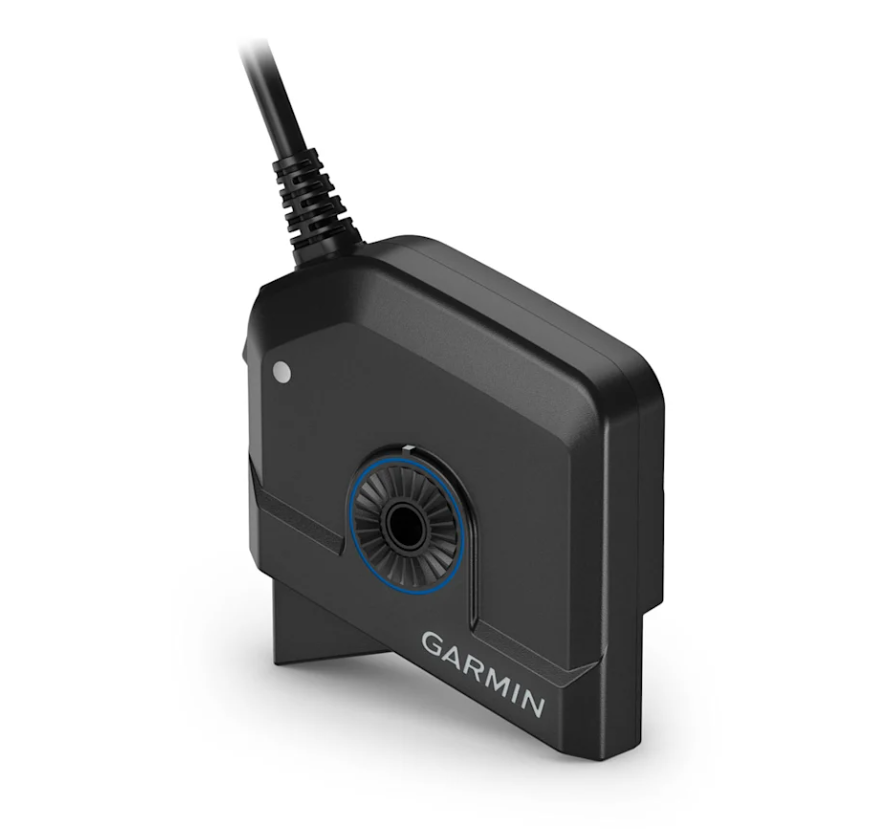

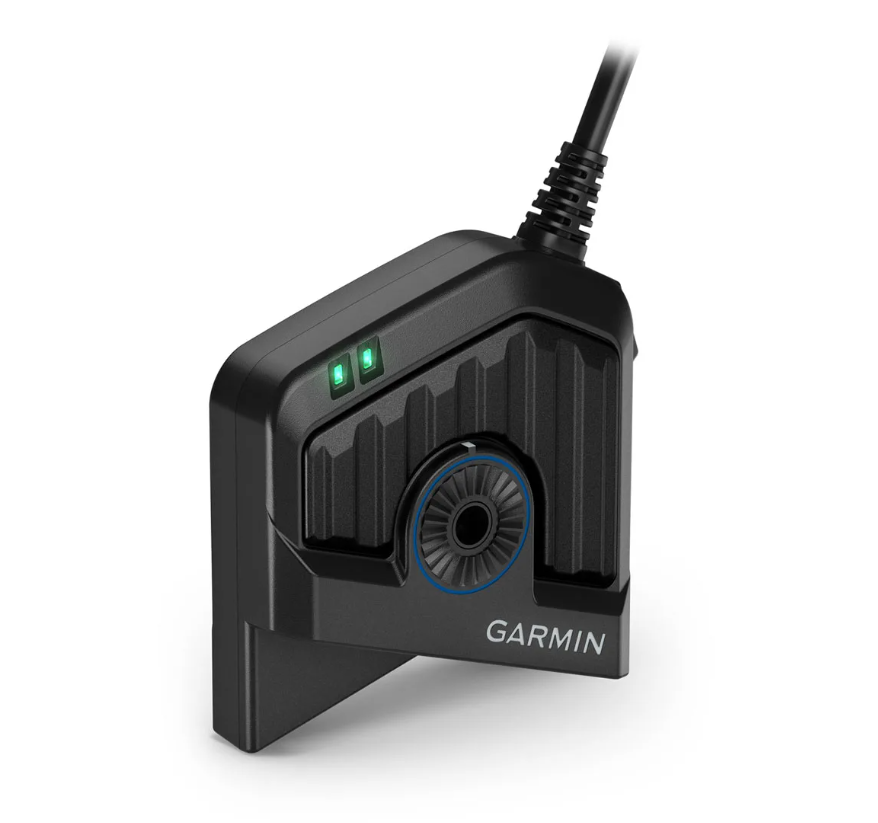

- Simple install- the transducer connects straight to your compatible chartplotter and power source, no black box required
- Real-time reaction-fast processing means you see fish move and react as it happens, so you know exactly when to set the hook
- Smart sensors built in-water detection auto-shuts the sonar when the transducer's out of the water, plus a temperature sensor while it's in

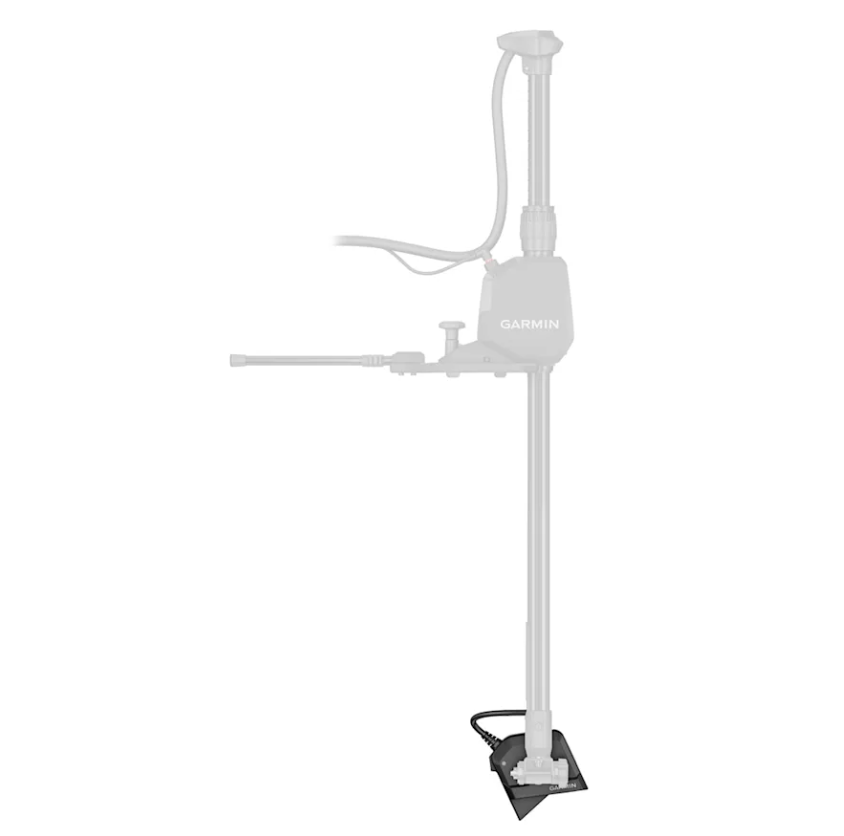

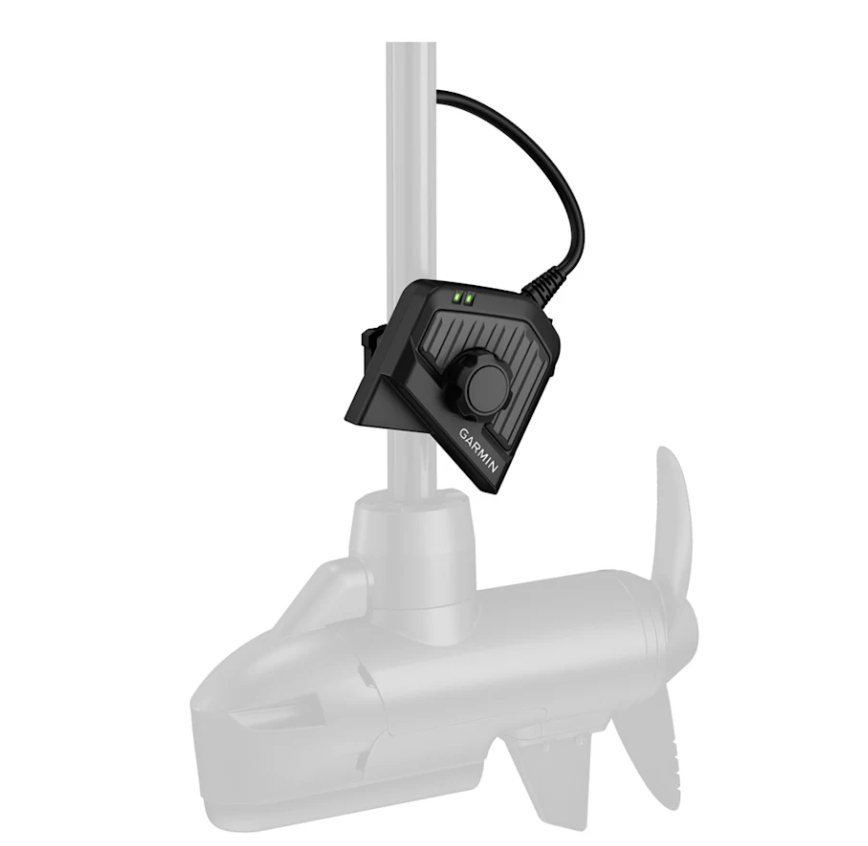

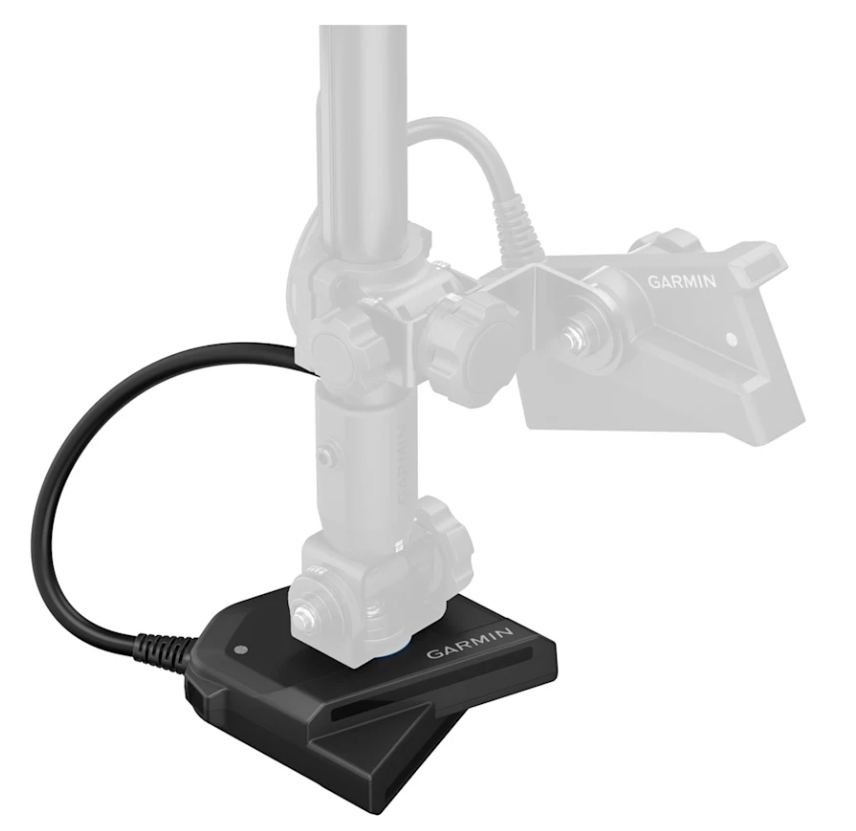

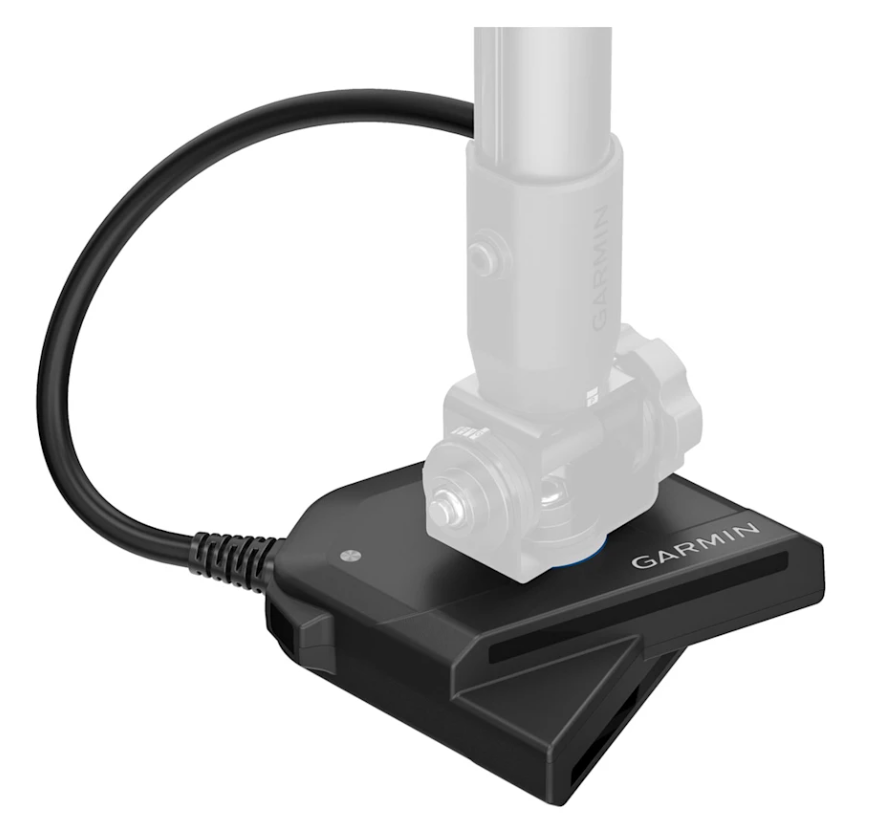

- Wider coverage- improved angles across Forward, Down and Perspective modes, with the adjustable Perspective Mode Mount included
- 15+ colour palettes-pick the palette that shows the detail clearest for your water, when paired with a compatible chartplotter
| Transducer beamwidth | Forward: 20° x 165° Down, Perspective: 20° x 180° |
|---|---|
| Transducer cable length | 5.5 m (18 ft) |
| Transducer number of pins | 7 |
| Dimension | 5.2” x 5.3” x 1.9” (13.3 x 13.4 x 4.8 cm) |
| Weight |
3.62 lbs (1.646 kg) |
| Temperature range | Operating: 0 C to 40 C |
Electrical Features |
|
| Power input | 10-35 V |
|---|---|
| Power usage | 32 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 4" |
Sonar Features |
|
| Frequency | 850 kHz-1600 kHz |
|---|---|
| Transmit power | 521 W |
| Maximum depth | Down and Forward: 125’ |
| Sonar type | Live |
| Target separation @ 100 ft | 12.6" |
| Target separation @ 30 ft | 3.8" |

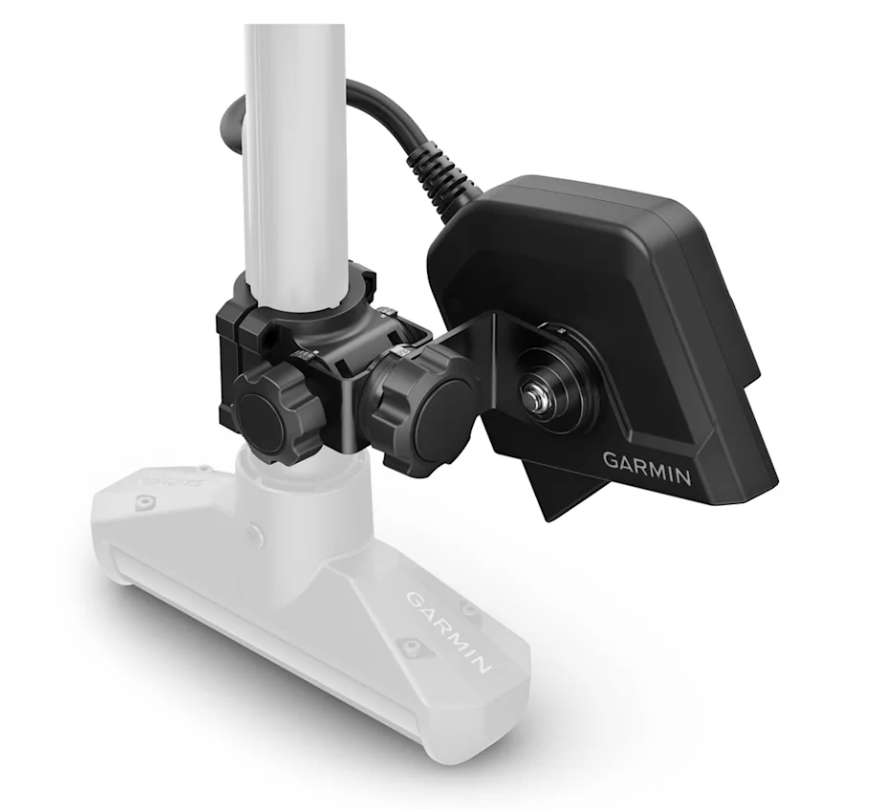

| Perspective mode mount included | yes (adjustable angles) |
| Water detection transmit control | |
Networking & Connections |
|
| Garmin Marine Network Ports |
1 BlueNet (small connector) with GMN1 Adapter |
|---|---|
| Power connection | yes (2-wire) |
