Description

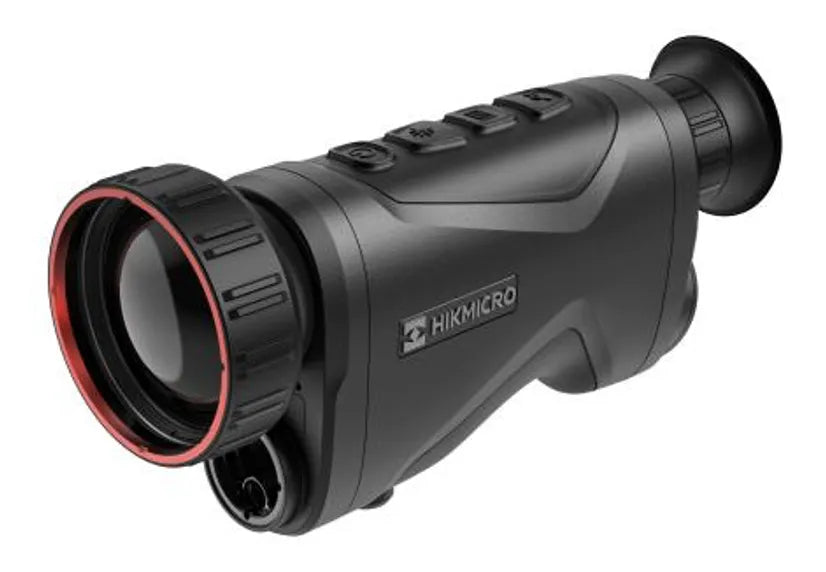

The HikMicro Condor PRO CH25L is a handheld thermal imager with a sub 20mK NETD 384×288 pixel thermal sensor, similar to the HikMicro Falcon FQ series. It features a magnesium alloy body, a 1000m Laser Range Finder, and offers a detection range of up to 1200m for man-sized targets. The device has variable magnification from 2.8x to 20x and a 1024×768 OLED High Definition display for clear visuals in various conditions.
The ultra-sensitive sub 20mk NETD thermal sensor ensures clarity in adverse weather like fog and rain. It offers an 10.5° ×7.9° degree field of view, making it suitable for spotting wildlife in different environments.
The HikMicro Condor uses the “Image Pro” and “Zoom Pro” algorithms to optimize image quality and enhance details during magnification.
It includes an integrated Laser Rangefinder (LRF) for precise distance measurement up to 1000m with an accuracy of +/- 1m.
The device has a quick startup time (under 3 seconds) and comes with three replaceable batteries, offering 4.5 hours of continuous operation.
Additionally, it supports audio and video recording with Wi-Fi connectivity for sharing and live streaming via the HikMicro Sight app.
HikMicro CONDOR CH25L 25mm Thermal Imager features:
- High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
- 384 × 288 resolution with 12 μm detector
- 1024 × 768 resolution 0.39-inch OLED display
- Advanced image processing technology
- Image Pro for enhancing detail recognition
- Zoom Pro for digital zooming without loss of picture quality
- Replaceable and rechargeable Li-ion battery
- Up to 4.5 hours of continuous operation
- 450 g lightweight, with a compact and ergonomic design
Ultra clear image, impressive detail recognition
Powerful high sensitivity (NETD＜20mK) thermal detector of HIKMICRO CONDOR thermal imaging monocular helps small details of objects and backgrounds to be identified easily and clearly in different weather and light conditions.
Purpose-built image algorithm brings stunning image quality
The high sensitive 640 x 512 12 μm Vox image sensor offers high quality image performance with incredible detail.
Accurate Distance Measurement
Distance from the game is essential to ensure a safe shot. The integrated laser rangefinder in HIKMICRO CONDOR thermal monocular allows the user to measure a distance up to 1,000m with an accuracy of ±1 meter in various scenarios, enjoying the most precise measurement of the situation.
Ergonomic grasp
HIKMICRO CONDOR’s compact and easy-grasp shape design perfectly fits human hands’ purlicue. It adopts soft and skin-friendly material to guarantee better operation for both left- and right- hand users.
Replaceable batteries
HIKMICRO ensures users never have to worry about running out of power. The HIKMICRO CONDOR thermal monocular comes with three replaceable and rechargeable 18,650 batteries, providing an impressive 4.5 hours of continuous operation.
HikMicro CONDOR CH25L 25mm Thermal Imager specifications
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384×288 |
| Frame Rate | 50Hz |
| Pixel Interval | 12μm |
| Response Waveband | 8μm to 14μm |
| NETD | Less than 20 mK (@25°C),F#=1.0 |
| Lens (Focal Length) | 25mm, f1.0 |
| Detection Range | 1200m |
| Focus Mode | Focus Ring |
| Field of View(H × V), Degrees / m @100m | 0.5° ×7.9°/ 18.3m × 13.8m @ 100m |
| Min. Focusing Distance | 2.5m |
| Magnification | 2.5×-20.0× (8×) |
| Image Display | |
| Display | 1024×768, 0.39 inch, OLED |
| Contrast Adjustment | Yes |
| Brightness Adjustment | Yes |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 4mm |
| Eye Relief | 15mm |
| Diopter (Range) | -5D to +3D |
| Image Pro | Yes |
| Tone Adjustment | Cold, Warm |
| Zoom Pro | Yes |
| General | |
| Protection Level | IP67 |
| Weight | 386g without battery |
| Dimension | 180.7 mm × 52.7 mm × 85.4 mm |
| Working Temperature | -30°C to +55°C |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Hotspot | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (64GB) |
| PIP | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Audio Recording | Yes |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion |
| Battery Operating Time | 4.5 hours of continuous running** |
| Type-C Power Supply | 5V DC, 2 A Supports External Power |
| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905nm |
| Max. Measuring Range | 1000m |
| Measurement Accuracy | ±1m |
| Min. Measuring Range | 1om |
