Description

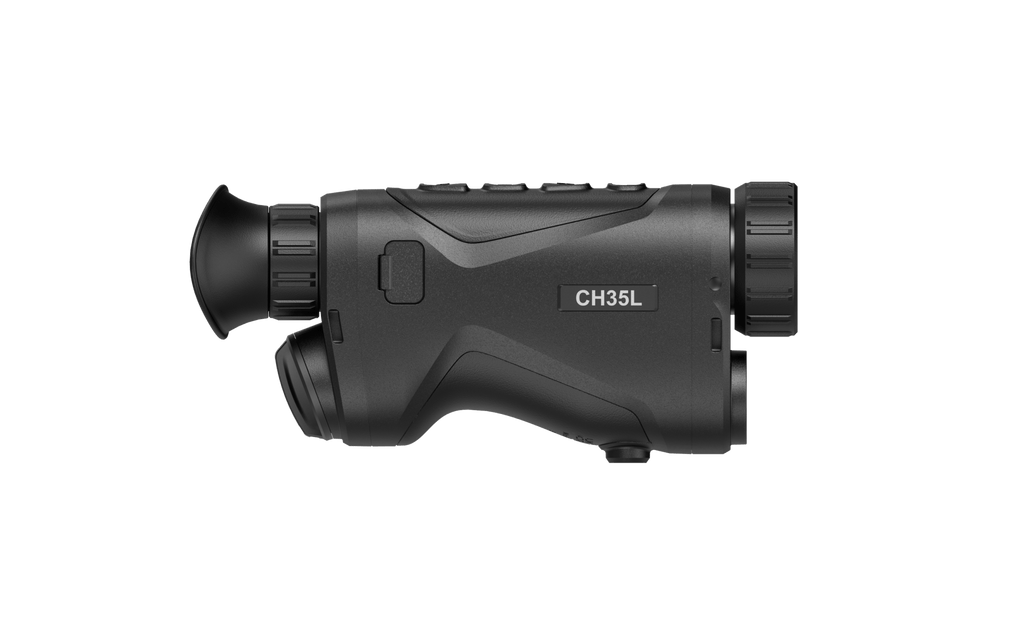

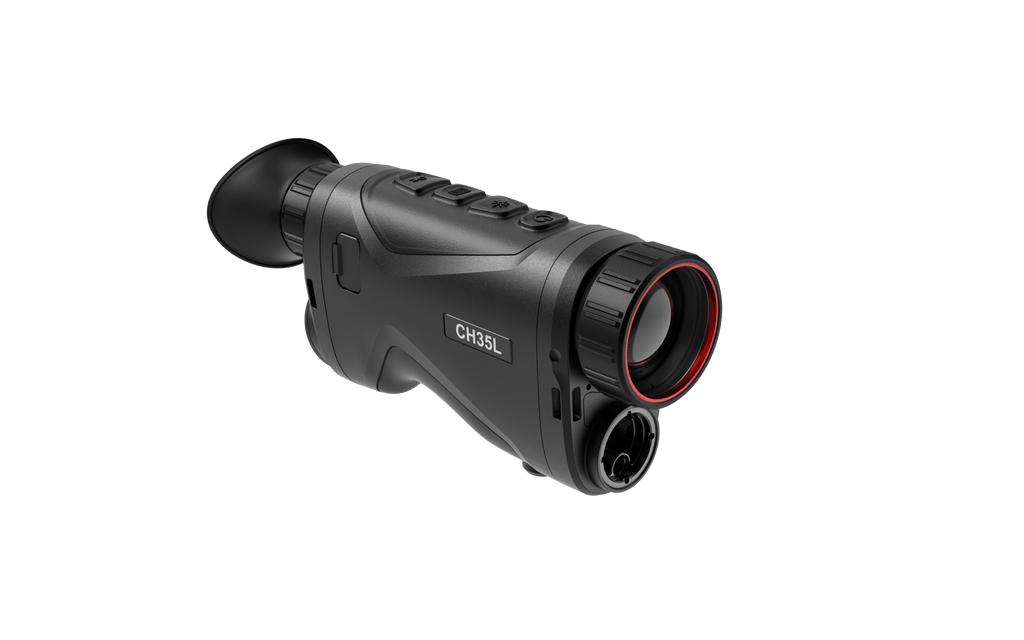

The HIKMICRO CONDOR CH35L thermal monocular is equipped with a 384 × 288 @ 12 um infrared detector and a 1024 × 768 OLED display. With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect image quality and detail recognition even in the hardest weather conditions. Its 1000 m Laser rangefinder can accurately measure the distance when you are stalking or observing under low-light conditions.
It can be applied mainly in forest hunting, birding, animal searching, adventuring, and recusing scenario.
HUGE DETECTION DISTANCE
With an 1800 meter detection distance, the HIKMICRO CH35L Thermal Monocular will allow you to spot targets quickly and move into position.
LASER RANGE FINDER
Range your targets accurately with a built-in Laser Range Finder (LRF), accurate within 1 meter out to 1000 meters.
IP67 RATING
The CONDOR is built to withstand the harshest weather and can be submerged for up to half an hour in a meter of water.
SPECS
| Image Sensor | VOx Uncooled Focal Plane Arrays |
|---|---|
| Max. Resolution | 384 × 288 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 20 mK (@25°C), F# = 1.0 |
| Lens (Focal Length) | 35 mm, f1.0 |
| Focus Mode | Focus Ring |
| Detection Range | 1800 m |
| Min. Focusing Distance | 3.5 m |
| Magnification | 3.5× to 28.0× (8×) |
| Field of View(H × V), Degrees / m @100 m | 7.5° × 5.6°/13.1 m × 9.7 m @ 100 m |
| Image Display | |
| Display | 1024 × 768, 0.39 inch, OLED |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 4 mm |
| Eye Relief | 15 mm |
| Diopter (Range) | -5D to +3D |
| Brightness Adjustment | Yes |
| Tone Adjustment | Cold, Warm |
| Contrast Adjustment | Yes |
| Image Pro | Yes |
| Zoom Pro | Yes |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Storage | Yes |
| PIP | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | 4.5-hour continuous running with CVBS and hotspot function off (@25°C) |
| Type-C Power Supply | 5 VDC, 2 A |
| Supports External Power Supply | |
| General | |
| Protection Level | IP67 |
| Dimension | 184.9 mm × 53 mm × 87.8 mm (7.28" × 2.09" × 3.46") |
| Weight | 400 g without battery |
| Working Temperature | -30°C to +55°C |
| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905 nm |
| Max. Measuring Range | 1000 m |
| Measurement Accuracy | ± 1 m |
| Min. Measuring Range | 10 m |
