Description
Ultra Clear Image. Impressive Detail Recognition
The higher sensitivity in combination with high-definition sensor and larger aperture optics provides the best quality, most detailed&high-contrast, informative image in all weather conditions.
Features
1. Extremely high thermal sensitivity, NETD<20mK
High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves sensitivity. The smallest details of objects and backgrounds can be identified clearly.
2. High definition thermal detector, up to 640x512 @12μm
Equipped with 12μm high-end thermal detector and up to 640x512 pixel resolution offer an excellent temperature resolution to ensure the thermal image significantly sharp and richly contrasted.
3. Super large aperture f/0.9 lens, 19% improvement
With a high-performance aspheric germanium lens, the super large aperture f/0.9 offers better temperature radiation capturing capability. Compared with the f/1.0 aperture, the capturing of temperature radiation level is increased by 19%. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.
On one battery pack the device can run up to 7 hours. With the convenient replaceable feature, another battery unit can be used as the spare one for non-stop operation. Besides, power banks connected via a Type-C interface can be used as an external power supply.
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 640x512
Frame Rate: 50Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 20 mK (@25°C),F#=1.0
Lens (Focal Length): 25mm, F1.0

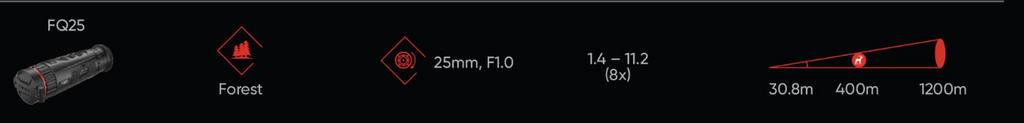

Detection Range: 1200m
Focus Mode: Focus Ring
Field of View(H × V), Degrees / m @100m
