A few months ago, you accepted the invitation to go hunting together full of anticipation. Now the time has come: the equipment is ready, you take up a comfortable and stable position and reach for the X-range. At an estimated distance of 200 metres, a fallow buck emerges from the edge of the forest. The laser rangefinder says 173 metres. You silently swap your binoculars for a rifle and determine the point of aim. One deep breath and you take the safety off.
The integrated laser rangefinder reliably delivers fast and accurate results, even in poor weather and at long distances. The additional angle correction display is helpful for steep shots in the mountains. In short: laser-assisted measuring, know the correct distance, aim right.

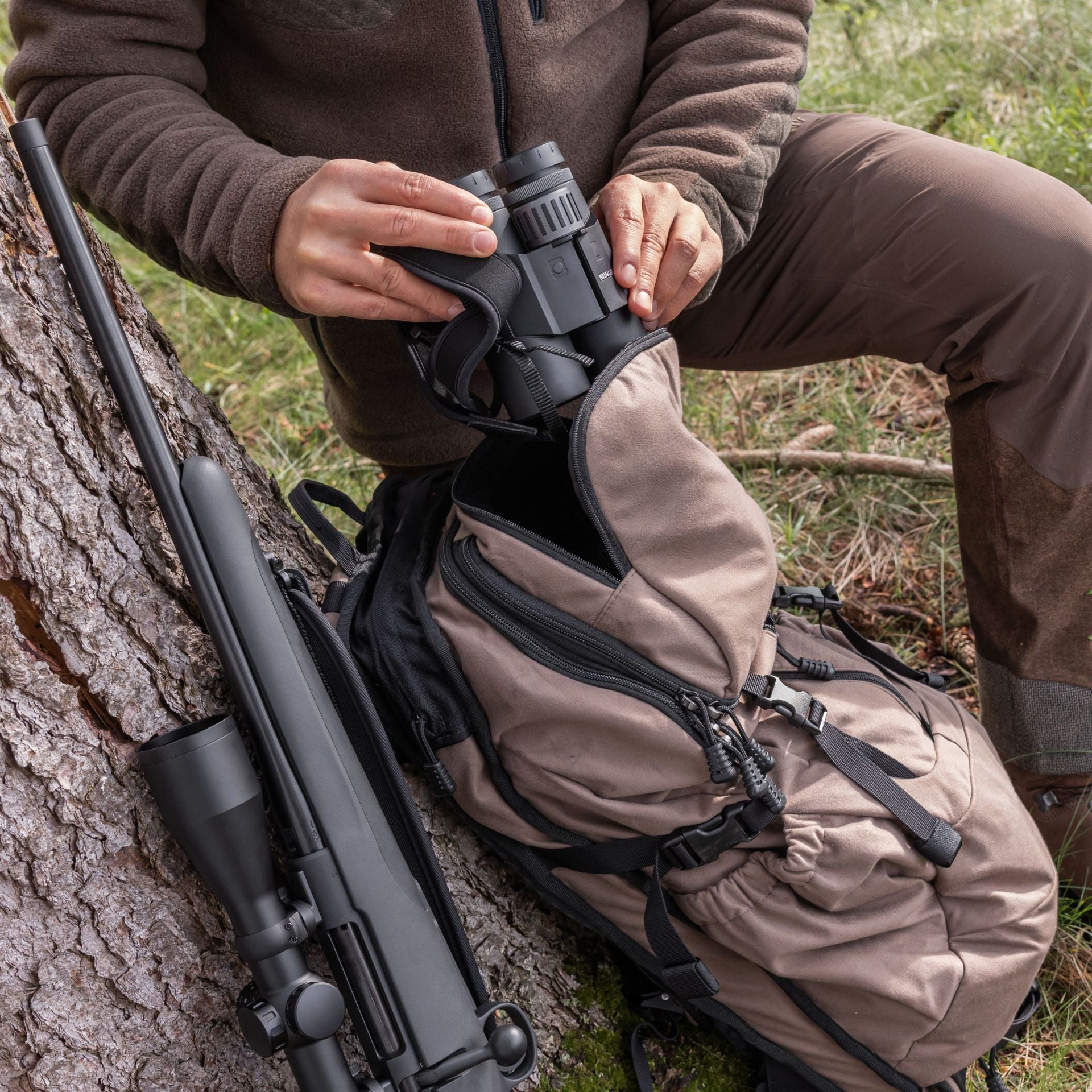

At 15.2 cm by 13.2 cm, the X-range is particularly handy and even suitable for smaller hands. Due to its compact design, it doesn’t take much space in your backpack.
The maximum range of the X-range for exact distance measurement is 2,800 metres. This allows distances to large objects, such as farms or mountains, to be checked. The distance to game can be measured precisely down to 1,600 metres. The precise information and excellent image quality enable reliable targeting acquisition and aiming. Ideal for stalking and hunting trips!

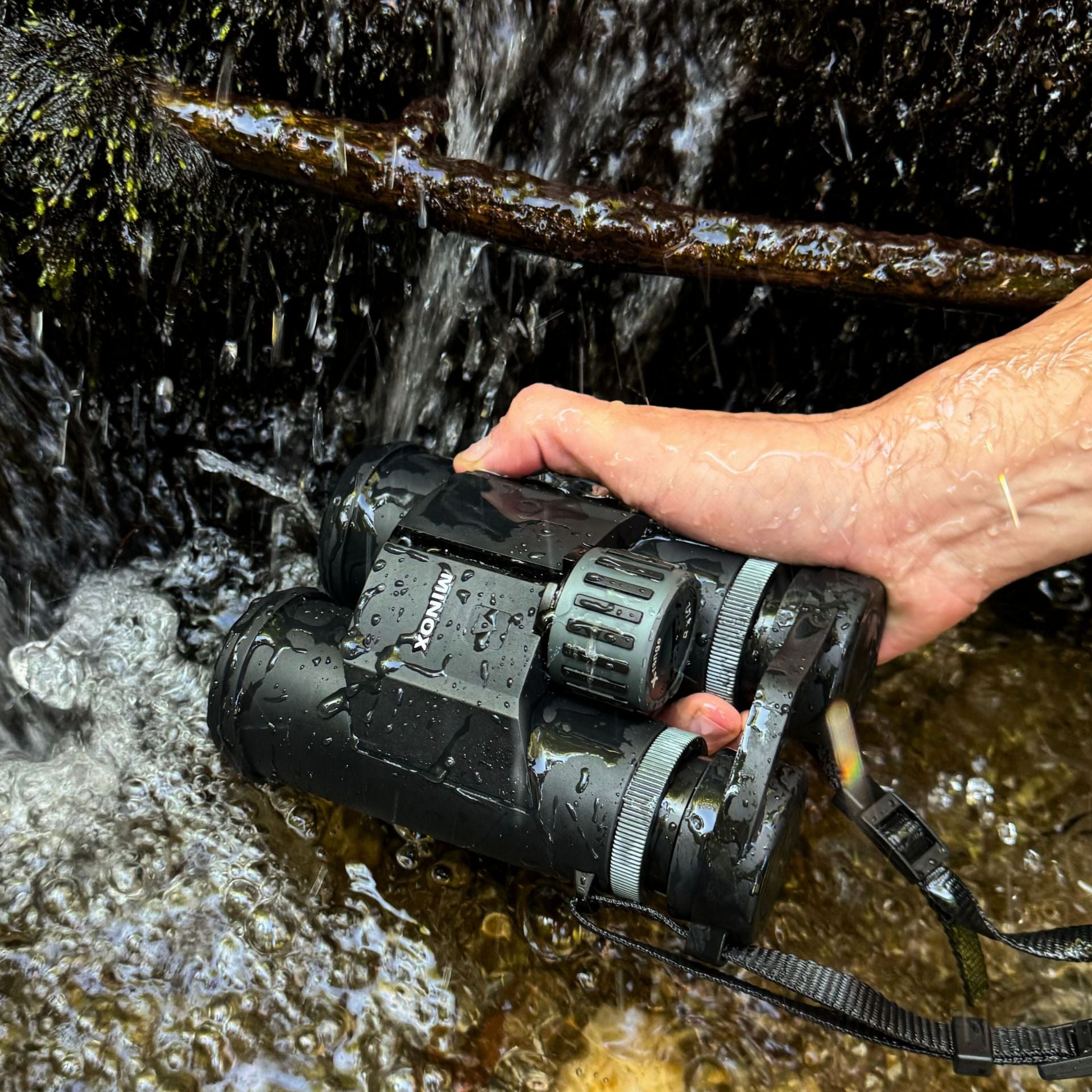

Whether in the cold, rain, transport in a backpack or stalking through thickets: the MINOX X-range is equipped for all demands. Its magnesium housing is lightweight and extremely robust at the same time. Binoculars that meet every challenge on the hunting ground.
The MINOX X-range has two push buttons on the bridge. One control button is for the menu, the other for the rangefinder. The button assignment is freely selectable. This means that the X-range can not only be operated with one hand but is also suitable for both left-handed and right-handed users.
The X-range replaces guessing distances with precise measuring. With a maximum measuring range of 2,800 metres this model is suitable for all hunting conditions. The true-colour and bright image enables a reliable identification, while the laser distance measurement provides an exact basis for accurate shots - even in the mountains thanks to the angle correction. The equally robust and compact binoculars are suitable for right and left-handers. Compact, modern, precise.
| MODEL | 10x42 | 8x42 |
| Magnification | 10x | 8x |
| Lens diameter (mm) | 42 | 42 |
| Exit pupil (mm) | 4.2 | 4.2 |
| Interpupillary distance (mm) | 58-78 | 58-78 |
| Field of view at 1,000 m (m) | 106 / 6.1° | 106 / 6.1° |
| Close focus (m) | 4 | 4 |
| Diopter adjustment (dpt.) | ± 3 | ± 3 |
| Operating temperature °C | -10° to +50° | -10° to +50° |
| Maximum measurable distance (m) | 2800 (large objects) / 1600 (wildlife) | 2800 (large objects) / 1600 (wildlife) |
| Measuring unit | Meter and Yards | Meter and Yards |
| Measurement accuracy up to 1,000 m (m) | ±1 | ±1 |
| Measurement accuracy up to 2,800 m (m) | ±2 | ±2 |
| Display | OLED | OLED |
| Display brightness levels | 5 | 5 |
| Display options | "Distance & angle, Distance & horizontal distance" | "Distance & angle, Distance & horizontal distance" |
| Battery life | approx. 4,000 measurements | approx. 4,000 measurements |
| Power supply | 1x CR2 Lithium (3V) | 1x CR2 Lithium (3V) |
| Housing | Magnesium | Magnesium |
| Nitrogen purged | Yes | Yes |
| Waterproof according to IPX7 | Yes | Yes |
| Measurements (mm | HxWxD) | 152x132x52 | 152x132x52 |
| Weight (g) | 990 | 990 |
| Order no. | 80408390 | 80408390 |
| MINOX Comfort Service | Yes | Yes |
