The Nightforce NX8 2.5-20x50mm F1 is an exceptionally versatile riflescope with a magnification range ideal for hunters, designated marksmen, and competitorsThe Nightforce NX8 2.5-20x50mm F1 is the answer to an "all-purpose" riflescope. The magnification range is exceptionally versatile for hunters, designated marksmen, and competitors. At a mere 12 inches in length, this riflescope features Nightforce ruggedness, DigIllum, and ZeroStop elevation turret. At high magnification, the crisp, clear images and 110 MOA/ 32 MRAD of elevation travel enable shooters to easily engage targets at all distances.
Body Tube Diameter:30mm
Click Value:.250 MOA or .1 MRAD
Elevation Feature:ZeroStop
Eye Relief:3.5 in/88 mm
Focal Plane:First Focal Plane (F1/FFP)
Illumination:Digillum
Magnification Range:2.5-20x
Mounting Length:5.4 in/138 mm
Overall Length:12.0 in/305 mm
Parallax Adjustment:11 yd–∞
Power Throw Lever:Standard
Weight:28.3 oz/802 g
Reticle:MOAR™ F1,MIL-C™ F1,MIL-XT™,Horus TREMOR3™,MOA-XT™
Color:Black,Dark Earth

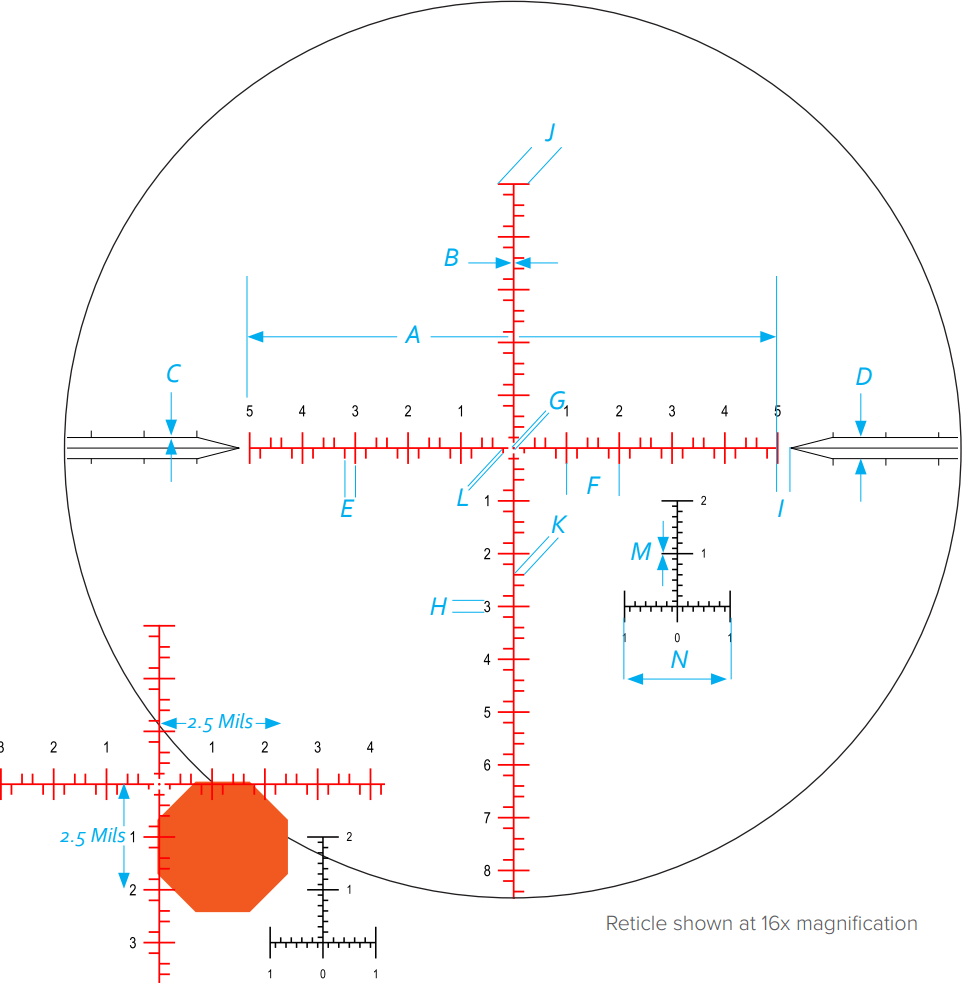

| A |
See Subtension Chart |
| B |
See Subtension Chart |
| C |
0.04 mil |
| D |
0.4 mil |
| E |
0.2 mil |
| F |
1 mil |
| G |
0.05 mil |
| H |
0.35 mil |
| I |
0.2 mil |
| J |
0.6 mil |
| K |
0.2 mil |
| L |
0.1 mil |
| M |
0.03 mil |
| N |
2 mil |
Subtension Chart
|
A |
B |
| NX8 20x |
20 mils |
.041 mils |
| NX8 32x |
20 mils |
.036 mils |
| ATACR 16x |
10 mils |
.04 mils |
| ATACR 20x |
20 mils |
.04 mils |
| ATACR 25x |
10 mils |
.033 mils |
| ATACR 35x |
10 mils |
.033 mils |
