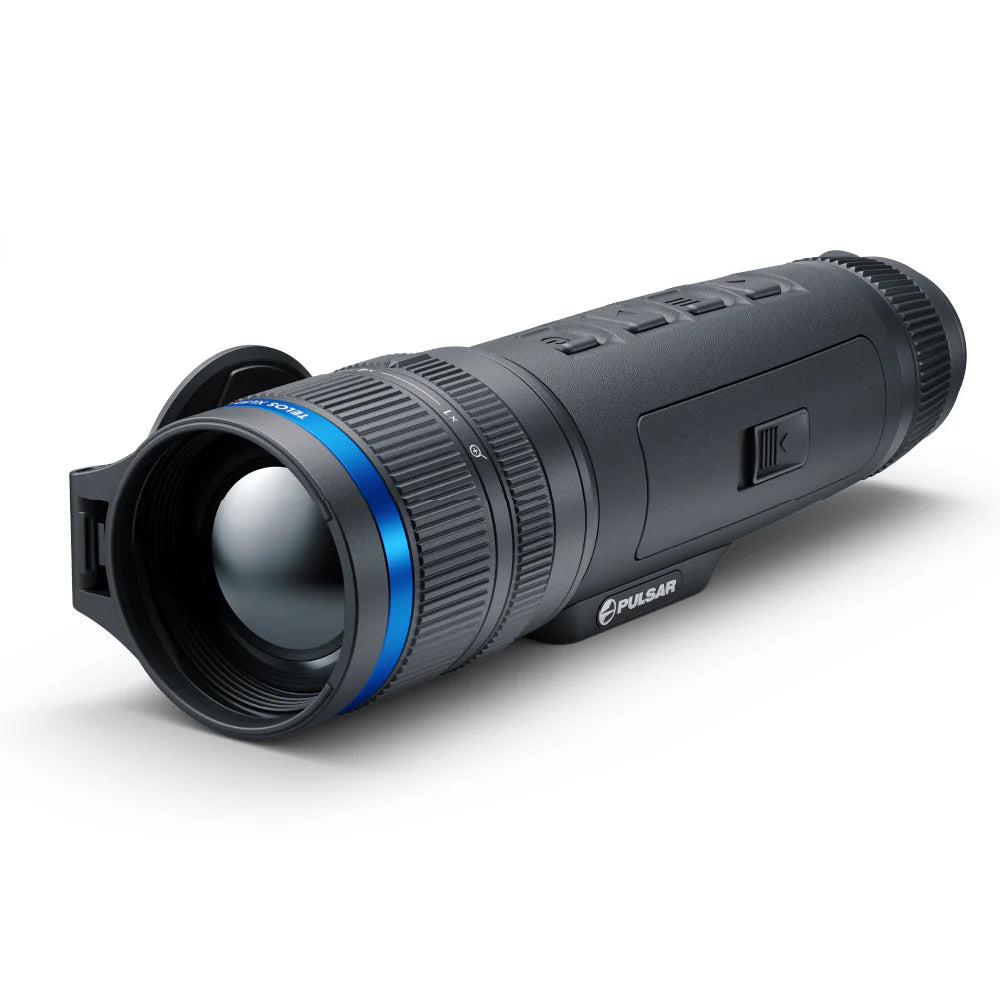

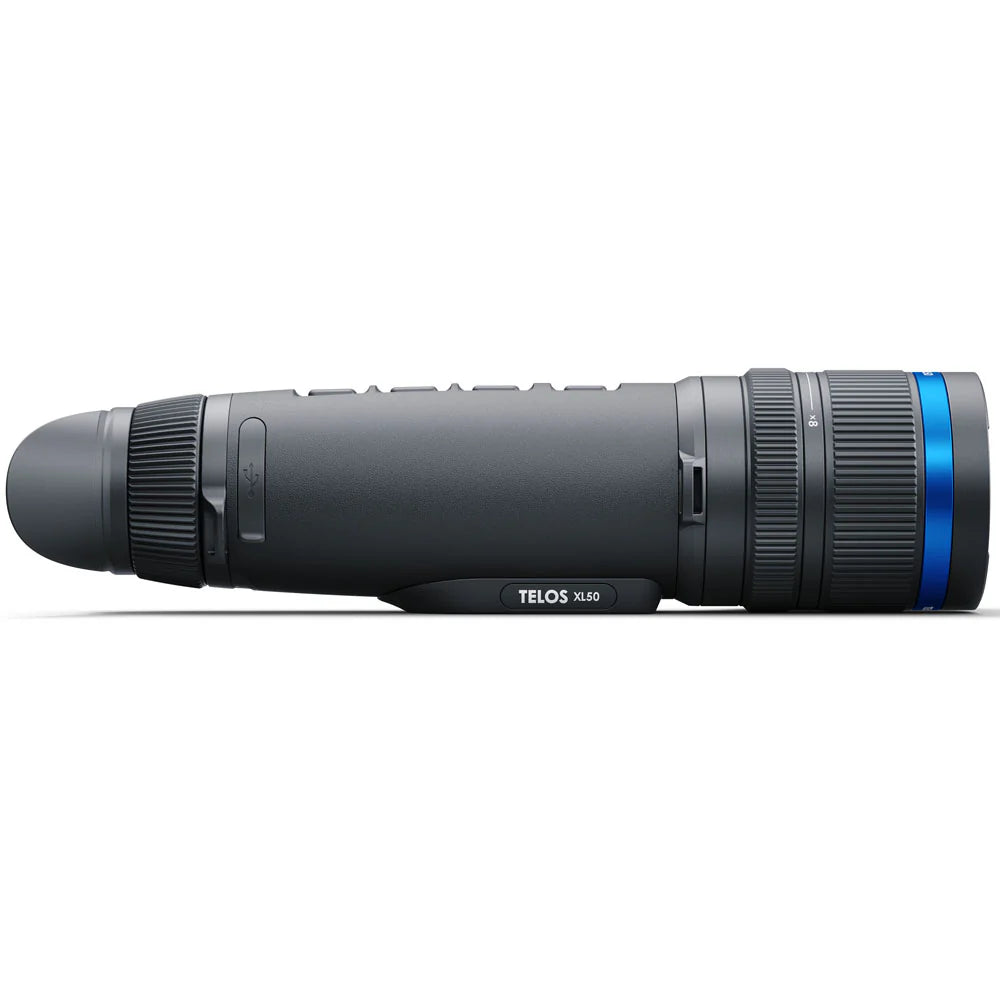

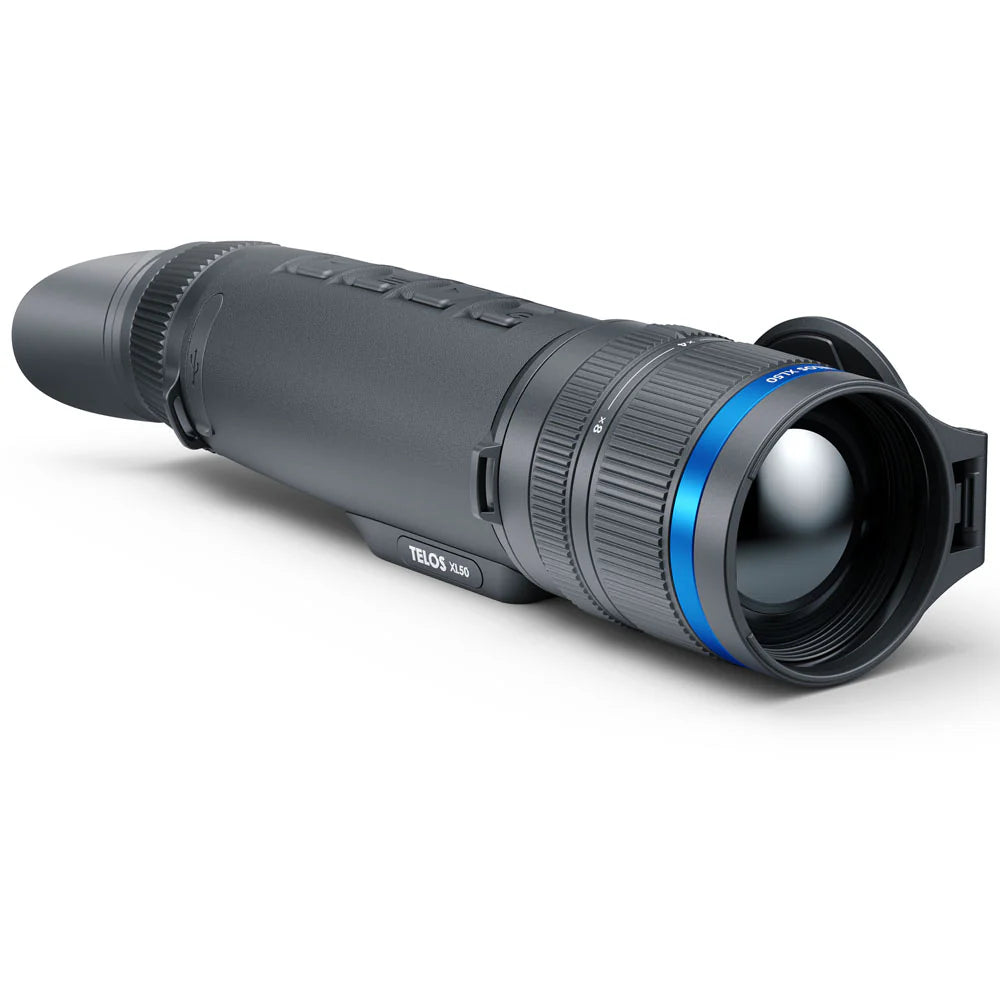

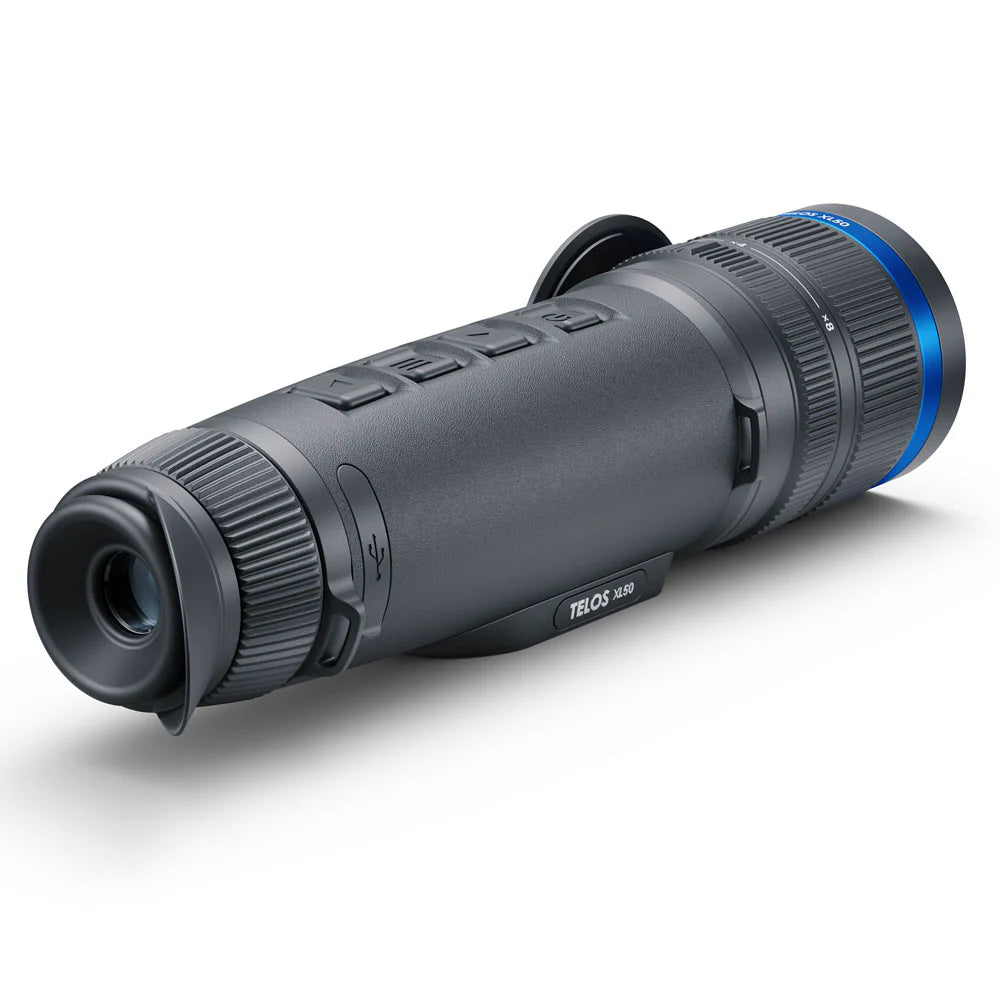

TELOS XL50
First HD thermal monocular.
The device has 1024x768 high-quality resolution, which can ensure reliable target identification.
This is an unbeatable monocular that every hunter should own.
Experience extreme image quality with the new upgradeable Pulsar monocular Telos.
For a more tactile and intuitive use of Pulsar flagship handhelds active the haptic feedback function in the short menu of the Telos. The unit will respond with short vibrations when pressing the control buttons.
Objective ring zoom control
You can ideally adjust the image in Telos with one hand − the focusing and smooth zoom rings are located on the lens in the classic layout, one by one, as in professional camera objective lenses. The consistent arrangement of the rings enables getting a clear image with the required magnification quickly and with minimal effort.
Built for toughest conditions
Telos thermal imaging devices have been designed for use in the tough outdoors using and in the temperature range of -25 to +40 °C. The device is waterproof when fully immersed in water. The composite polymeric rubber-coated case possesses high operational qualities. The absence of protruding parts in the design, as well as the anatomically optimal housing shape of the Telos thermal imaging devices contribute to safety and comfort during prolonged use time.
Replaceable battery pack with direct plug & wireless fast charge options
The brand-new LPS 7i quick-change Li-ion battery guarantees more than 8 hours of operating time. LPS 7i doesn't require special chargers − just connect it to any network adapter via the USB Type-C port and charge it using the Power Delivery fast charging protocol in a short time. Moreover, the LPS 7i battery supports wireless charging.
Ergonomic, nonslip rubber-coated housing
The rubber-coated housing helps to securely hold the thermal imaging device in the hand in both dry weather and rain. The housing has exceptional wear resistance and perfectly withstands operation in a wide range of temperatures, including dusty and moist conditions, and it protects the device from falls. In addition, the housing is easily cleaned and keeps its original appearance for a long time.
Adaptable for left- and right-handed use
The vertical symmetrical layout of the controls allows Telos to be used with both hands with the same degree of comfort − the buttons are located in a row on the top panel, and the lens rings are used for focusing and changing magnification.
Main
Sensor
1024x768 @ 12 µm (NETD <40 mK)
Objective lens
F50 / 1.0
Magnification, x
2.5 – 20 (x8 zoom)
Field of view (HxV), degrees / m@100m
14x10.5 / 24.6х18.5
Detection range, m
2300
Sensor Type
uncooled
Resolution, pixels
1024x768
Pixel pitch, µm
12
NETD, mK
<40
Frame rate, Hz
50
Optics
Objective lens
F50 / 1.0
Magnification, x
2.5 – 20 (x8 digital zoom)
Field of view (HxV), degrees / m @ 100 m
14x10.5 / 24.6х18.5
Eye relief, mm
14
Display Type
AMOLED
Resolution, pixels
1024x768
Range Performance
Detection range, m
2300
Video Recorder
Video / photo resolution, pixel
1024x768
Video / photo format
.mp4 / .jpg
Built-in memory, GB
64
Wi-Fi
Wireless Protocol
Wi-Fi
Wireless Standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz
2.4 / 5
Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPХ7 (Waterproof)
Operating temperature range, °С
-25 – +40
Supported Application
Stream Vision 2
Power Supply
Output voltage, V
3.0 – 4.2
Battery type
LPS 7i Li-Ion Battery Pack
Capacity, mAh
6400
Operating time on battery pack (at t=22°C), h *
7
External power supply, V
5V, 9V (USB Type-C Power Delivery)
Weight & Size
Body material
rubber armored reinforced plastic
Dimensions, mm
243x72x62
Weight, kg
0.67
Trade Data
SKU (Model #)
77516
