Description

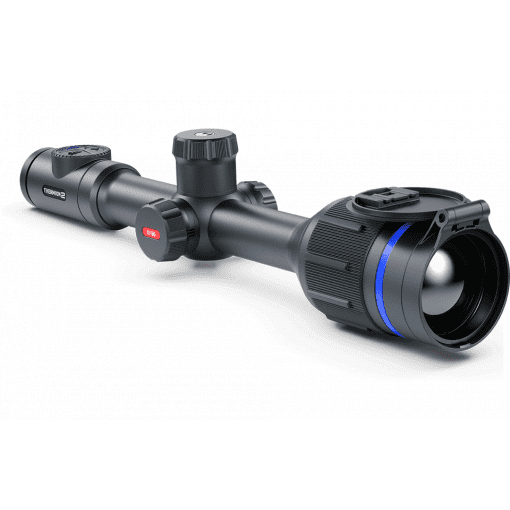

The Thermion 2 range is the second generation of Pulsar’s flagship hunting thermal imaging riflescope series.
The XQ series feature a lower resolution 384x288 sensor with a NETD of <40mK, which helps keep the price of the XQ series to approx 2/3rd that of the flagship XP models.
Features
Classic Design. Mounts using standard 30mm scope rings. No specialized tools or equipment are required.
Super Sensitve Thermal Imaging sensor with 384x288 pixel resolution and NETD <40mK value ensures high detail recognition even in the most severe weather conditions when thermal contrast is low. The smallest temperature differences in observed objects can be clearly visible during heavy rainfall, dense fog or cold mornings making it easy to recognize and identify the game and its features.
Fast F/1.0 Aperture and Germanium Optics ensures optimal heat energy transmissivity minimizing noise and improving detail of observed scene.
Extreme Detection Range. High quality germanium optics coupled with an advanced thermal imaging sensor ensure an unprecedented detection range of up to 2.000 yards (1.800 metres) in, even in complete darkness.
Battery Life. Thermion 2 XQ riflescopes feature a unique combined battery system consisting of two rechargeable Li-ion batteries, internal and external providing up to 5hrs on a single charge. The external rechargeable battery can be hot swapped in a matter of seconds, providing additional duration during the hunt.
Wi-Fi Integration with the built-in Wi-Fi module will connect with iOS and Android devices using our Stream Vision 1 or Stream Vision 2 mobile applications. This combination provides functionality such as wireless update of the Thermion's software and transmission of images to the screen of the device in real time.
Recoil Rated up to .375 H&H rifle or 12ga shotgun.
Variable Magnification from the base magnification using digital zoom. Zoom changes either gradually in 2x steps or continuously offering the ideal ratio of magnification and visible field of view for specific situations.
Photo and Video Recording. Keep the best moments of observation and share them with your friends and hunting colleagues. One touch of a button is enough to capture an interesting moment or start recording a video. 16 GB of internal memory will give the ability to record many hours of video and tens of thousands of photos.
8 Colour Palettes. A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.
High Precision Aiming with the Picture-in-Picture function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.
Zeroing Profiles management for storing up to 5 zeroing profiles, with 10 distance coordinates each for varying situations, in internal memory for quick rifle change-outs and on-the-fly adjustments.
10 Recticle Styles in 9 colour modes. Thermions possess a wide array of shape and color customizable reticles, including static, ballistic and scalable reticles. 9 Color options help to optimize aiming for specific conditions.
Image boost technology, a proprietary combination of software algorithms which enhance image clarity and overall image detail. Applying Image Boost makes for a sharper and more detailed picture enabling better object identification capabilities.
High Constrast 1024x768 HD AMOLED display has enhanced color rendering, power saving, a high contrast image and quick-response, providing clear and smooth images for on-the-move observation or in cold conditions.
Completely Waterproof with an IPX7 waterproof rating. The Thermion 2 PRO riflescopes work in conditions of high humidity and heavy rain and can withstand half an hour immersion in water to a depth of 1 meter.
SPECIFICATIONS (Thermion 2 XQ50, SKU76545)
| Main | |
| Sensor | 384x288 pix. @ 17 µm (NETD <40 mK) |
| Objective Lens | F50 F/1.0 |
| Magnification | 3.5 - 14x (4x zoom) |
| Field of view (HxV), degrees / m@100m | 7.5x5.6 / 13.1x9.8 |
| Detection Range, m | 1800 |
| Sensor | |
| Type | uncooled |
| Resolution, Pixels | 384x288 |
| Pixel Pitch, µm | 17 |
| NETD, mK | <40 |
| Frame Rate, Hz | 50 |
| Optics | |
| Objective Lens | F50 F/1.0 |
| Magnification | 3.5 - 14x (4x zoom) |
| Field of view (HxV), degrees / m @ 100 m | 7.5x5.6 / 13x9.8 |
| Eye Relief | 50mm |
| Display | |
| Type | AMOLED |
| Resolution, pixels | 1024x768 |
| Range Performance | |
| Detection Range, m | 1800 |
| Recticle | |
|
Click value, H/V, mm at 100 m
|
13 / 13 (on minimum maginification |
|
Click range, H/V, mm at 100 m
|
2600 / 2600 |
| Number of preloaded recticles | 10 |
| Video Recording | |
| Video / Photo resolution | 1024x768 |
| Video / Photo format | .mp4 / .jpg |
| Built-in Memory | 16Gb |
| Wi-Fi | |
| Wi-Fi Standard | 802.11 b/g |
| Freqency, GHz | 2.4Ghz |
| Environmental Characateristics | |
| Degree of Protection, IP code (IEC60529) | IPX7 |
| Operating Temperature Range, °C | -25 - 50°C |
| Connections & Compatabilities | |
| Max Recoil - Rifle, Joules | 6,000 |
| Max Recoil - Shotgun | 12ga |
| Mounting platform | 30mm diameter scope rings |
| Supported Application | Stream Vision 1, Stream Vision 2 |
| Power Supply | |
| Voltage, V | 3.0 - 4.2V |
| Battery Type | Li-Ion |
| Battery Models (Capacity) | External: APS2 (2000mAh) Internal: 4900mAh |
| Maximum Run Time (at 22°C), h | 5+hr |
| External Power Supply | 5V (Micro USB Type-B) |
| Weight and Size | |
| Body Material | Metal |
| Dimensions | 412x78x83mm |
| Weight, gm | 900 |
