Description

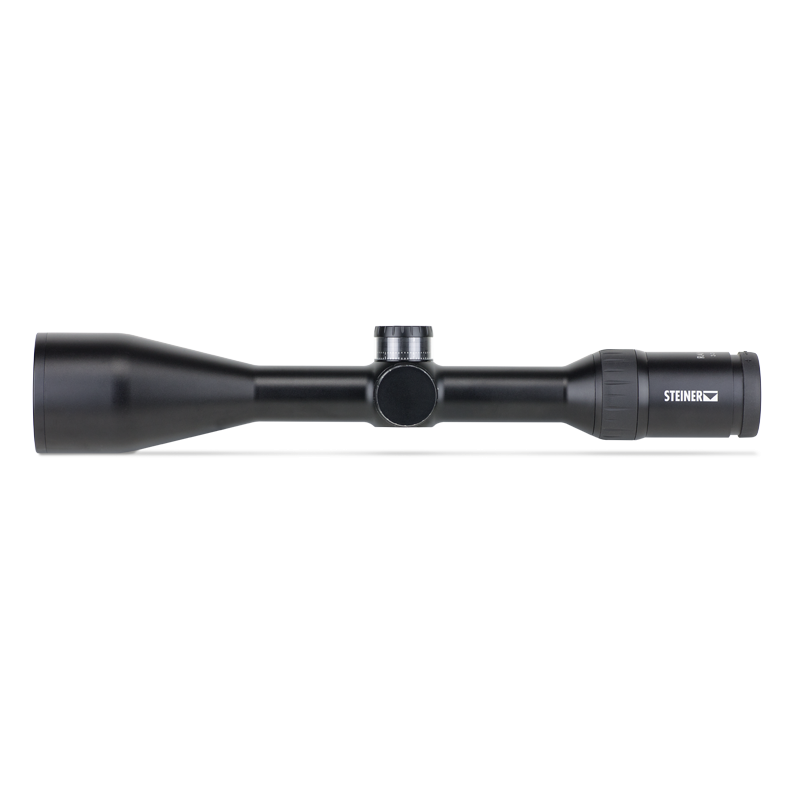

The Steiner Ranger 8 3-24x56 4A IR CCW Ballistic Turret Scope brings an XL-field of view that is ideal for hunters seeking a comprehensive perspective and enhanced security. Steiner's high-contrast optics deliver vivid, high-contrast images with remarkable detail, even in challenging lighting. With over 92% light transmission, the scope ensures clarity at dawn or dusk. The zero-mode feature allows for easy adjustment, aiding quick target acquisition in dark environments. Its elegantly designed, lightweight frame supports seamless mounting, while the fiber point reticle adapts to any lighting situation, offering precision and reliability.
Optical features
- Magnification min./max: 3x / 24x
- Effective lens diameter: 56 mm - 33 mm
- Exit pupil: 8,5 mm - 2,3 mm
- Field of view at 100m: 12,6 m - 1,6 m
- Eye distance: 95 mm
- Dioptric compensation: -3 / +2
- Parallax-free: 20m(y) to infinity
Function & Equipment
- High-Performance optics: High Contrast
- Nitrogen filling: Yes

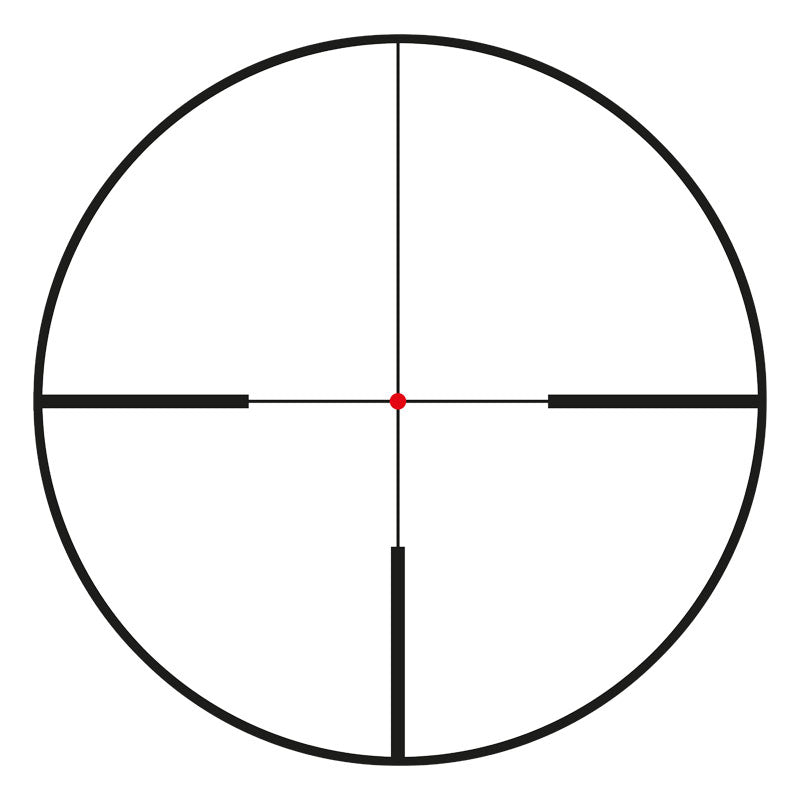

- Reticle: 4-AI fiber dot
- Reticle position: 2nd focal plane
- Reticle adjustment per click at 100 m: 1 cm / 100 m
- Max. Travel at 100 m height / side: +/- 115 cm
- Reticle illumination: 11 levels (5x day, 6x night) with OFF position between the levels, 6h Auto-Off
- Functional area: -25°C to +63°C
- Pressurised waterproof: 1 m
