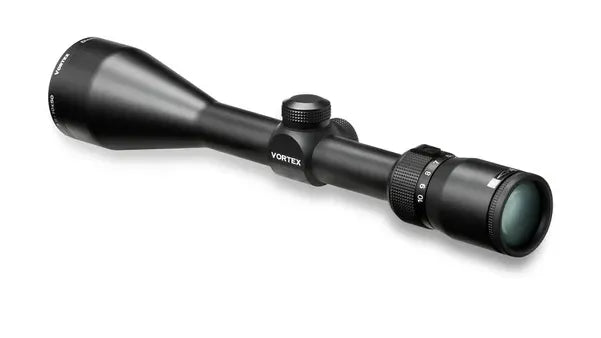

With a long legacy of proven grit, Diamondback® is a true workhorse, delivering hard-working reliability in trusted lineup of models. Excellent low-light capability. Brilliant contrast and sharpness that serves up impressive images. Renowned for toughness and accuracy, it’s built with durable construction and a lightweight design, giving hunters the confidence to push further and succeed in any terrain. Simple to use and rugged enough for any hunt, Diamondback® is made to go the distance, from the East to the Rockies and beyond.
Included in the Box
- Removable Lens Covers
- Lens Cloth
Diamondback 3.5-10x50 Dimensions (in inches)
| Lengths |
| L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
| 12.5 |
2.15 |
2.1 |
5.48 |
3.85 |
3.1 |
| Magnification |
3.5-10x |
| Objective Lens Diameter |
50 mm |
| Focal Plane |
Second Focal Plane |
| Reticle |
Dead-Hold® BDC (MOA) |
| Eye Relief |
3.3 " |
| Field of View |
35.8' - 13.5' @ 100 yds |
| Turret Style |
Capped |
| Tube Size |
1 inch |
| Adjustment Graduation |
1/4 MOA |
| Travel Per Rotation |
15 MOA |
| Max Elevation Adjustment |
65 MOA |
| Max Windage Adjustment |
65 MOA |
| Parallax Setting |
100 yds. |
| Length |
12.5" |
| Weight |
15.5 oz. |
