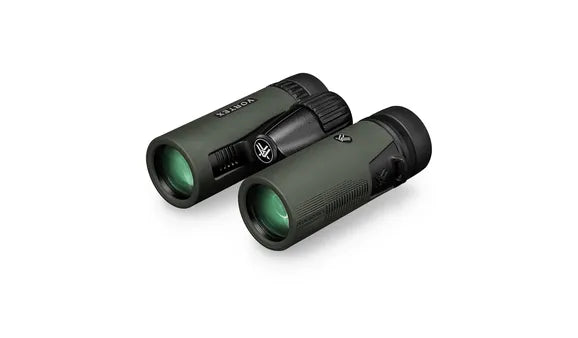

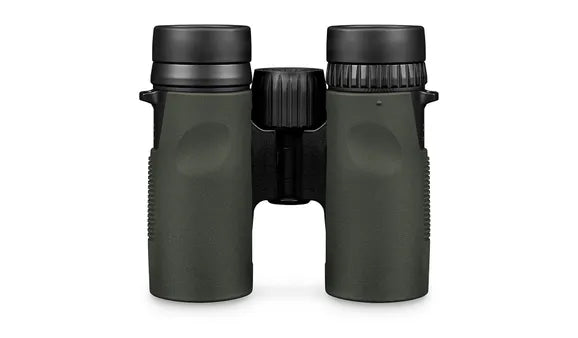

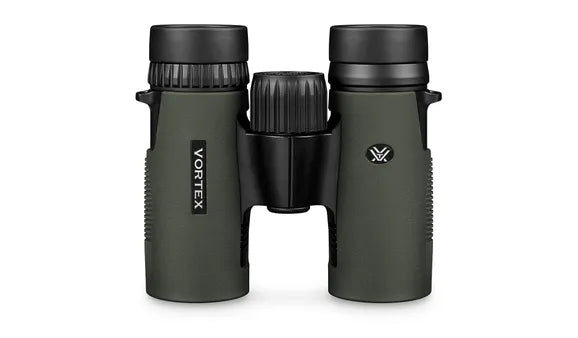

Made for hunters who demand hard-working, reliable optics, the Diamondback® HD delivers sharp resolution, enhanced contrast, and rugged durability. Lightweight yet tough enough to go the distance, it’s a strong lineup designed to handle any kind of hunt. A true workhorse, Diamondback® HD gives you the clarity, utility, and trust you need to consistently punch more tags.
Features
| HD Optical System |
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
| Fully Multi-Coated Lenses |
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| Dielectric Prism Coatings |
Multi-layer prism coatings provide bright, clear, color-accurate images. |
| True Open Hinge |
Offers superior ergonomics while decreasing total weight and bulk. |
| Adjustable Eyecups |
Twist up and down for comfortable viewing with or without eyeglasses. |
| Center Focus Wheel |
Adjusts the focus of both binocular barrels at the same time. |
| Phase Correction |
Coating on roof prism enhances resolution and contrast. |
| ArmorTek®
|
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Rubber Armor |
Provides a secure, non-slip grip, and durable external protection. |
| Argon Gas Purged |
Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions. |
| Waterproof |
Designed to withstand harsh weather conditions. |
| Fogproof |
Designed to withstand a wide range of temperatures. |
| Shockproof |
Designed to withstand the highest levels of impact. |
| Tripod Adaptable |
Allowing use on a tripod or car window mount. Tripod adapter may be required. |
|
Specs
| Magnification |
8x |
| Objective Lens Diameter |
32 mm |
| Eye Relief |
16.0mm |
| Angular Field of View |
8.1º |
| Close Focus |
5.0' |
| Interpupillary Distance |
55mm - 72mm |
| Linear Field of View |
426' @ 1000 yds |
| Height |
4.4" |
| Width |
5.0" |
| Weight |
15.9 oz. |
