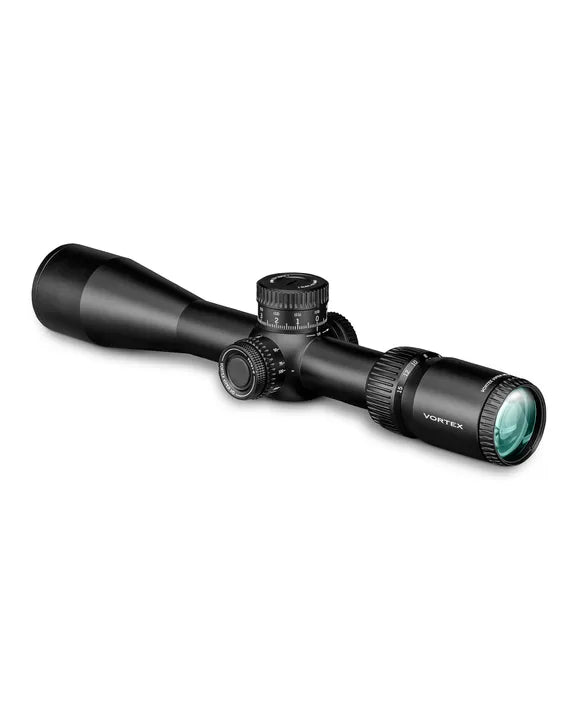

When success rides on the perfect shot, rely on the exceptional versatility and optical performance of Viper® HD. From predators to big game, river bottoms to the Rockies, there’s a field-proven configuration for every hunting application. Ultra-rugged. Remarkably adaptable. Each member of the Viper® HD family delivers outstanding image clarity, resolution, and sharpness to ensure your target comes into view with sharp detail. Viper® HD also boasts enhanced features for unmatched accuracy at extended ranges while also excelling in the low light of dawn and dusk when game is most active.
| Magnification |
3-15x |
| Objective Lens Diameter |
44 mm |
| Focal Plane |
Second Focal Plane |
| Reticle |
VMR-3 (MRAD) |
| Eye Relief |
3.4" |
| Field of View |
39.9' - 8.0' @ 100 yds |
| Turret Style |
Exposed Elevation Capped Windage |
| Tube Size |
30mm |
| Adjustment Graduation |
.1 MRAD |
| Travel Per Rotation |
10 MRAD |
| Max Elevation Adjustment |
30.5 MRAD |
| Total Elevation Adjustment w/ RevStop® installed |
18.9 MRAD |
| Max Windage Adjustment |
27 MRAD |
| Parallax Setting |
20 yds. - ∞ |
| Length |
13.2" |
| Weight |
22.5 oz. |
| Lengths |
| L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
| 13.2 |
2.1 |
1.8 |
5.5 |
4.3 |
3.4 |
