Description
Uncompromising quality and ruggedness – the Conquest® V4 line of high-performance riflescopes combines the tried-and-true ZEISS optics concept with a rugged and functional design. Equipped with 4x zoom and functional and fully reliable mechanics, these scopes set a new standard in their class.

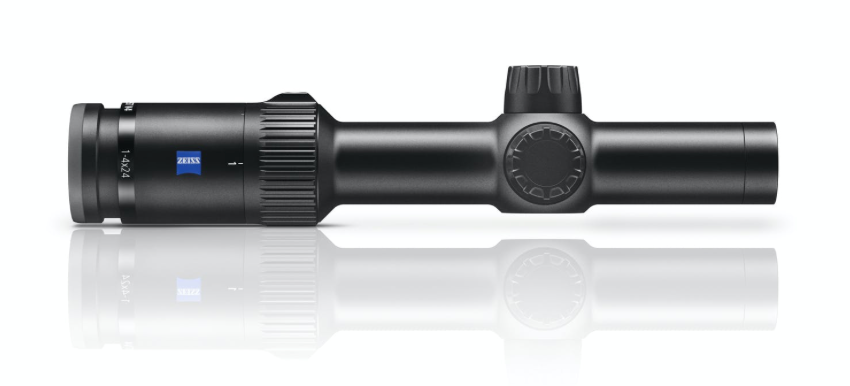

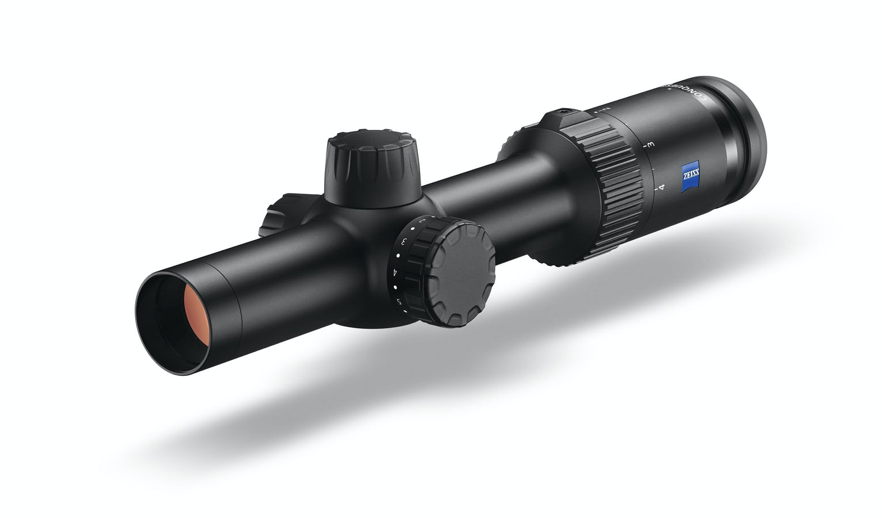

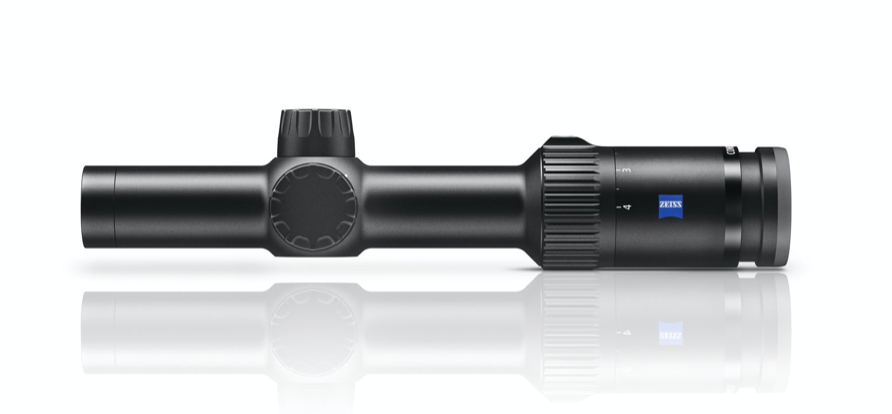

The 1-4x24 has proven to be the perfect riflescope for short-range hunting and situations which require the hunter to rapidly acquire the target.
Performance
|
Magnification |
1 – 4 x |
|
Effective lens diameter |
12.1 – 24 mm |
|
Exit pupil diameter |
11.9 – 6 mm |
|
Twilight factor |
3.5 – 9.8 |
|
Field of view |
38 – 9.5 m (125 – 31 ft) |
|
Angular field of view, real |
21.5° – 5.4° |
|
Diopter range |
+ 2.0 | − 3.0 dpt |
|
Eye relief |
90 mm (3.54 ") |
|
Parallax setting |
91.4 m (100 yds) |
|
Adjustment range at 100 m |
300 cm |
|
Adjustment per click at 100 m |
1.4 cm |
|
Centre tube diameter |
30 mm |
|
Eyepiece tube diameter |
44 mm |
|
Lens tube diameter |
30 mm |
Features
|
LotuTec | Nitrogen filled |
+ | + |
|
Water resistance |
400 mbar |
Physical
|
Operating temperature |
− 25°C | + 50°C (− 13°F | + 122°F) |
|
Length |
256 mm (10.1 ") |
|
Weight (without inner rail) |
470 g (16.6 oz) |
|
Weight (with inner rail) |
- |
