Description

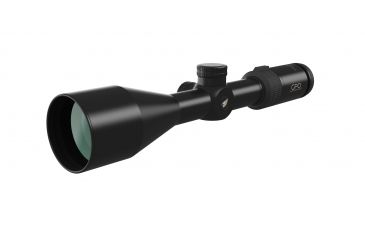

This premium 30mm riflescope gives additional advantages to the shooter, with higher magnification and a larger objective lens best suited to low-light shooting. The 56mm objective lens means the 3-12x56 is an ideal choice for use in the lowest and toughest light conditions.
- 4x technology
- 30mm Main Tube
- 56mm Objective Lens Diameter
- Double HD Objective Lenses
- Anodized Aluminum Turret Caps
- 1 CM / CW Rotation
- GPObright™ Lens Coating
- PassionTrac™ quick-zero target-turrets
- Fast focus ocular
| Magnification: | 3x - 12x | |
| Field of View (FOV) ft @ 100y: | 34 - 14 | |
| Field of View (FOV) m @ 100m: | 12,5 - 3 | |
| Objective diameter (mm): | 56 | Effective diameter |
| Exit pupil diameter (mm): | 19 - 4,7 | Measurement of the pupilary ocular beam |
| Eye Relief (inches): | 3,54 | From the last optical surface |
| Eye Relief (mm): | 90 | From the last optical surface |
| Travel value per click at 100y: | .36" | 1 Click = x / 100y |
| cm travel value per click at 100m: | 1 | 1 Click = x / 100m |
| Elevation range total (inches at 100y): | 52 | 100y |
| Elevation range total (cm at 100m): | 145 | 100m |
| Windage range total (cm at 100m): | 145 | 100m |
| Parallax compensation: | 100m | Parallax free at x distance |
| Transmission Daylight: | 90% | ISO 14490-5:2005 |
| Height (inches): | 2,8 | Without covers |
| Height (mm): | 72 | Without covers |
| Width (inches): | 2,1 | Fully extended |
| Width (mm): | 54,5 | Fully extended |
| Length (inches): | 13,4 | At outside diameter |
| Length (mm): | 340 | At outside diameter |
| Tube diameter(mm): | 30 | Width of main tube |
| Weight (ounces): | 23,7 | Without covers |
| Weight (grams): | 674 | Without covers |
| Windage range total (inches at 100y): | 52 | 100y |
| Mechanical outer diameter(objective mm): | 63,5 | Objective end of scope |
| Mechanical outer diameter (ocular mm): | 44 | Ocular end of scope |

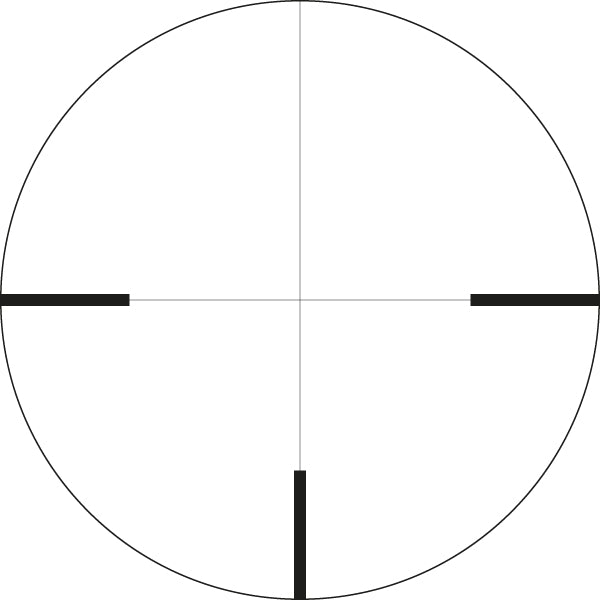

| Reticle Option: | G4 (German #4)
|
|
| Accessories included with this purchase: | instruction manual, cleaning cloth, bikini scope cover |
