Description

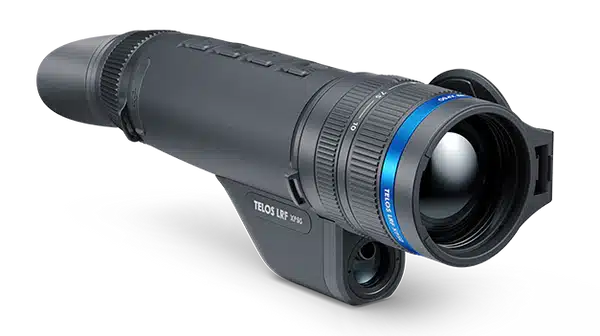

The Pulsar Telos LRF XQ35 thermal monocular offers robust thermal capabilities at an accessible price point. Featuring a NETD <25mK and a 384×288 pixel at 17µm sensor, it captures even faint heat signatures, resulting in highly detailed images with excellent contrast for seamless object detection in challenging conditions like heavy rain or dense fog. With a 1300 meter detection range, it’s ideal for mid to long-range observations, suitable for various applications such as wildlife observation, hunting, security, and search and rescue operations.
Innovative features anticipate the future of thermal imaging with the Telos LRF XQ35. A zoom control ring on the front allows effortless magnification adjustments, while a built-in laser rangefinder accurately detects objects up to 1000 meters away, providing precise distance measurements for enhanced accuracy. User experience is prioritized with a non-slip rubber housing for improved grip and a comfortable carry bag for easy transportation.
COMPLETELY UPGRADEABLE
The Pulsar Telos XQ35 LRF Thermal Monocular has the ability to have almost every part and feature upgraded, As technology upgrades so does the Telos. From the lens, sensor, and even range finder, The Telos will have to ability to be upgraded with all the new releases that may be available in the future giving the user the piece of mind knowing that he is always using the latest and greatest.
HD AMOLED DISPLAY
The 1024×768 pixel resolution AMOLED display has improved colour rendering, is power saving, offers high contrast imagery and a quick response, as well as providing clear & smooth images when observing on-the-move or in cold conditions.
IPX7 WATERPROOF
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The Pulsar Telos XQ35 LRF Thermal Monocular is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
| Sensor | 384x288 pix. @ 17 µm (NETD <25 mK) |
| Objective lens | F35 / 1.0 |
| Magnification, x | 3 - 12 (x4 zoom) |
| Field of view (HxV), degrees / m@100m | 10.7x8 / 18.7x14 |
| Detection range, m | 1300 |
| Sensor | |
| Type | uncooled |
| Resolution, pixels | 384x288 |
| Pixel pitch, µm | 17 |
| NETD, mK | <25 |
| Frame rate, Hz | 50 |
| Optics | |
| Objective lens | F35 / 1.0 |
| Magnification, x | 3 - 12 (x4 zoom) |
| Field of view (HxV), degrees / m @ 100 m | 8.8x6.6 / 15.4x11.5 |
| Eye relief, mm | 14 |
| Display | |
| Type | AMOLED |
| Resolution, pixels | 1024x768 |
| Range Performance | |
| Detection range, m | 1300 |
| Video Recorder | |
| Video / photo resolution, pixel | 1024x768 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory, GB | 64 |
| Wi-Fi | |
| Wireless Protocol | Wi-Fi |
| Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, GHz | 2.4 / 5 |
| Environmental Characteristics | |
| Degree of protection, IP code (IEC60529) | IPХ7 (waterproof) |
| Operating temperature range, °С | -25 – +40 |
| Connections and Compatibilities | |
| Compatible mounts | - |
| Mount, type | 1/4" |
| Remote control | - |
| Supported Application | Stream Vision 2 |
| Power Supply | |
| Output voltage, V | 3.0 – 4.2 |
| Battery type | LPS 7i Li-Ion Battery Pack |
| Capacity, mAh | 6400 |
| Operating time on battery pack (at t=22°C), h * | 8.5 |
| External power supply, V | 5V, 9V (USB Type-C Power Delivery) |
| Weight & Size | |
| Body material | rubber armored reinforced plastic |
| Dimensions, mm | 224х66х87 |
| Weight, kg | 0.48 (w/o battery) / 0.63 (with the LPS7i battery) |
| Laser Rangefinder | |
| Safety class for laser equipment according to IEC 60825-1:2014 | 1 |
| Wavelength, nm | 905 |
| Max. measuring range, m | 1000 |
| Measurement accuracy, m | ± 1 |
