Description

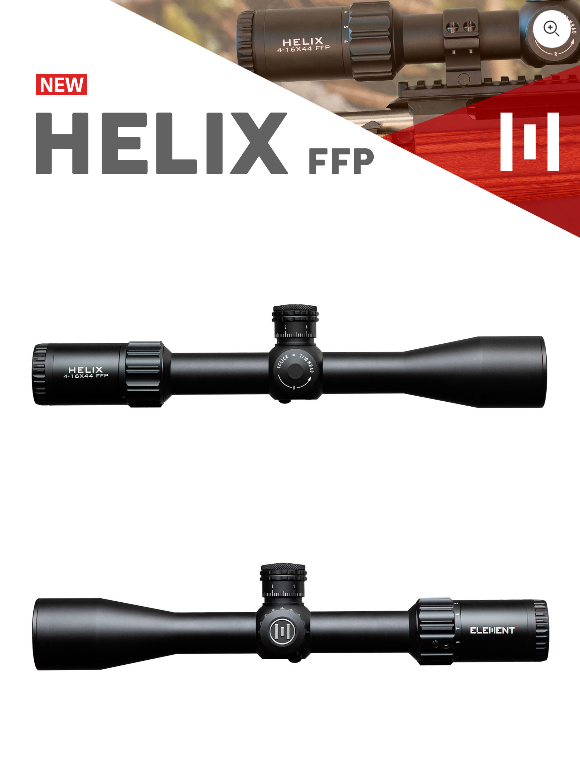

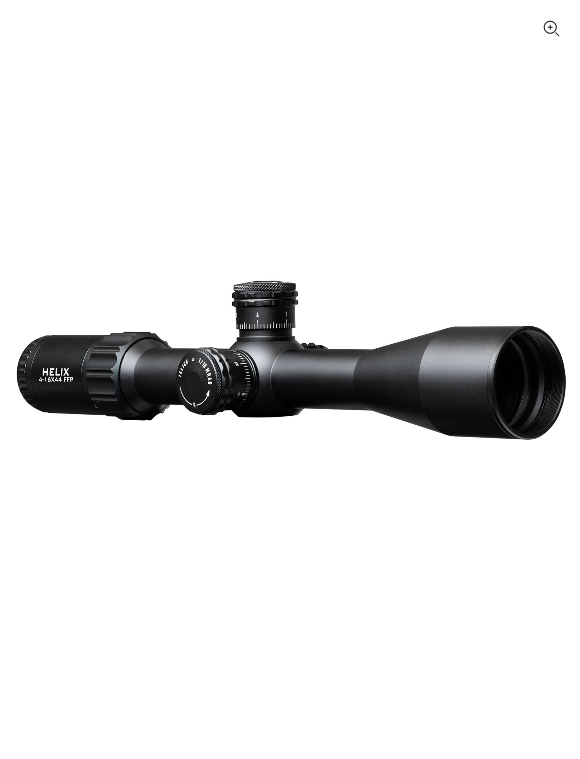

THE ALL-NEW 4-16×44 Helix FFP from Element Optics.
This riflescope offers all the brilliant features and rugged reliability that the 6-24×50 does, but with a distinct advantage: This is the lightest, most compact scope Element has made to-date!
FEATURES
- 30mm Main Body Tube
- Compact, Lightweight Design
- First Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 15yds-Infinity
- Fully Multi-Coated Lenses
- Tool-free Resettable Turrets with 6 MRAD / 15 MOA per Revolution
- Hard Mechanical Zero-Stop
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth & Rubber Lens Caps Included
SPECS
MAGNIFICATION RANGE
4-16x
TUBE DIAMETER
30mm
OBJECTIVE LENS DIAMETER
44mm
EXIT PUPIL
13.5-3.3mm
EYE RELIEF (Inches)
3.7
FIELD OF VIEW
@100yds:
26.2-6.55ft
CLICK VALUE
1/4 MOA
(15 MOA / REV)
1/10 MRAD
(6 MRAD / REV)
ELEVATION ADJ. RANGE
80 MOA
23.3 MRAD
WINDAGE ADJ. RANGE
45 MOA
13.1 MRAD
MINIMUM PARALLAX
15 YDS
15 METERS
LENGTH
14.2 Inches
360 mm
WEIGHT
23.8oz
675gr
