Description

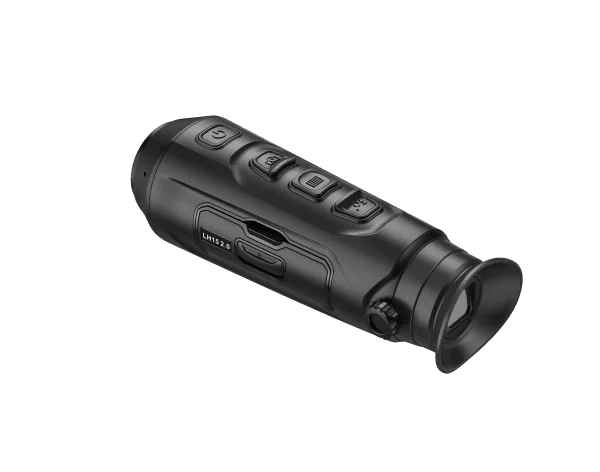

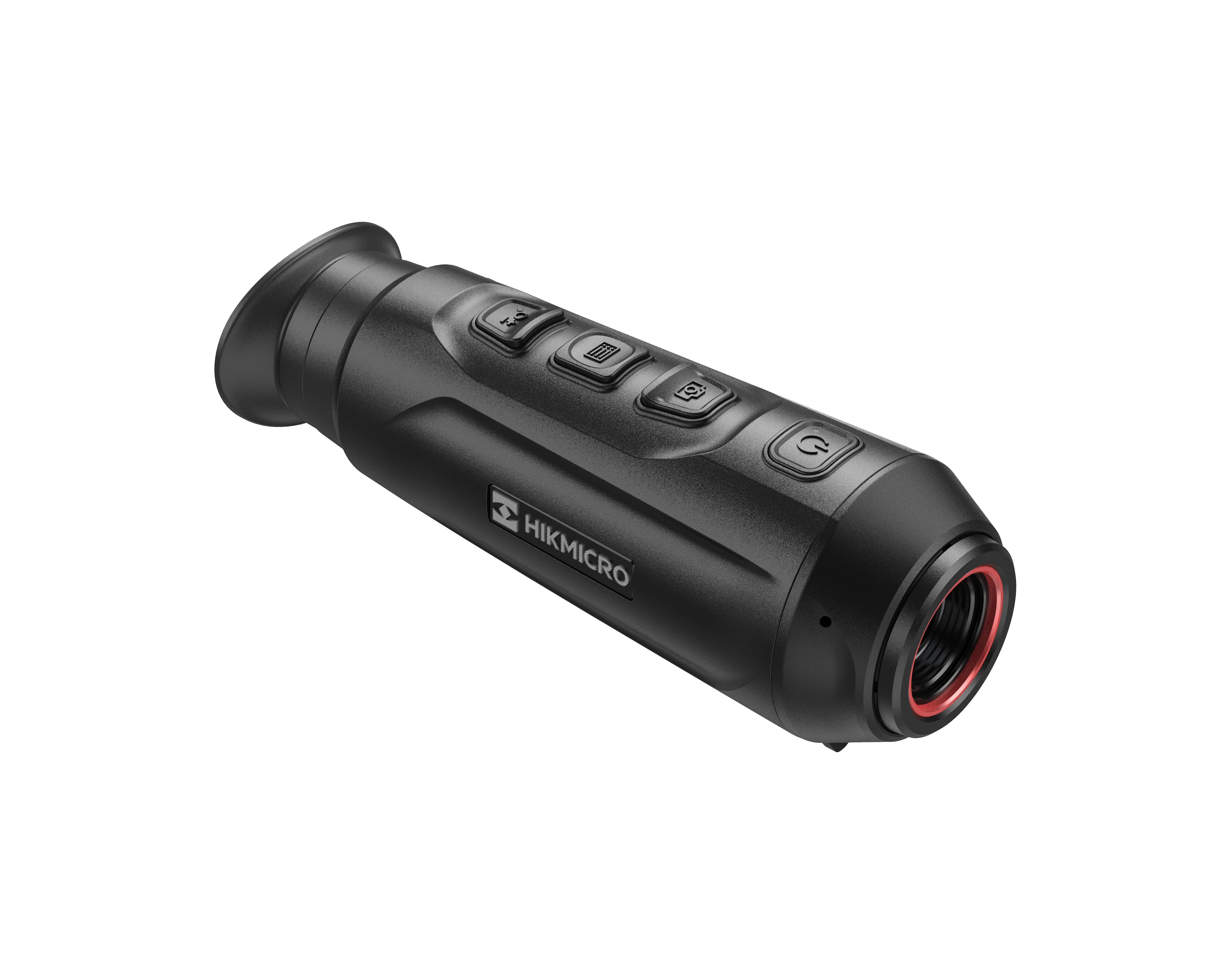

Featuring an impressive field of view spanning 43 meters, and equipped with a 384px, highly sensitive, 12μm NETD < 20mK sensor, the LH15 2.0 is designed to elevate the excitement of every forest hunter with a manual focus feature. Not only that, but field hunters will also appreciate its remarkable detection range, reaching up to 750 meters.
REMOVABLE BATTERY
The Lynx Pro LH15 now comes with a removable 18650 battery that allows for
longer battery life and longevity of the unit.
4 COLOUR PALETTES
Choose between Black Hot, White Hot, Red Hot, or Fusion.
750 METER DETECTION DISTANCE
Ideal unit for quick detection of fox, pig, deer, and dogs at a medium range to allow the user to move into a better position.
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384 × 288 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 20 mK (@25°C), F# = 1.0 |
| Lens (Focal Length) | 15 mm, f1.0 |
| Detection Range | 750 m |
| Min. Focusing Distance | 1.5 m |
| Magnification | 1.4x to 11.2x (8x) |
| Field of View(H × V), Degrees / m @100m | 17.5° × 13.1°/30.8 m × 23.0 m |
| Image Display | |
| Display | 1024 × 768, 0.39 inch, OLED |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 6 mm |
| Eye Relief | 20 mm |
| Diopter (Range) | -5 D to +3 D |
| Brightness Adjustment | Yes |
| Tone Adjustment | Cold, Warm |
| Contrast Adjustment | Yes |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (16 GB) |
| PIP | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | 6.5-hour continuous running with CVBS and hotspot function off (@25°C) |
| Type-C Power Supply | 5VDC, 2 A |
| Supports External Power Supply | |
| General | |
| Protection Level | IP67 |
| Dimension | 164.0 mm × 56.0 mm× 60.8 mm |
| Weight | 272 g without battery |
| Working Temperature | -30°C to +55°C |
